Rose::BinaryAnalysis::AsmUnparser::InsnRawBytes Class Reference

Description

Functor to emit instruction bytes.

The output is similar to the hexdump utility. This callback emits its own line prefix information via SgAsmExecutableFileFormat::hexdump() rather than using the format set with the unparser's set_prefix_format(). See class HexdumpFormat for how to configure the hex dumper.

Definition at line 402 of file AsmUnparser.h.

#include <backend/asmUnparser/AsmUnparser.h>

Inheritance diagram for Rose::BinaryAnalysis::AsmUnparser::InsnRawBytes:
Inheritance graph
[legend]

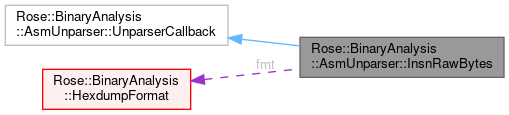

Collaboration diagram for Rose::BinaryAnalysis::AsmUnparser::InsnRawBytes:
Collaboration graph
[legend]

Public Member Functions

virtual bool operator() (bool enabled, const InsnArgs &args)
 Default callbacks. More...

- Public Member Functions inherited from Rose::BinaryAnalysis::AsmUnparser::UnparserCallback
virtual bool operator() (bool, const BasicBlockArgs &)
 Default callbacks. More...

virtual bool operator() (bool, const StaticDataArgs &)
 Default callbacks. More...

virtual bool operator() (bool, const DataBlockArgs &)
 Default callbacks. More...

virtual bool operator() (bool, const FunctionArgs &)
 Default callbacks. More...

virtual bool operator() (bool, const InterpretationArgs &)
 Default callbacks. More...


Public Attributes

HexdumpFormat fmt


Member Function Documentation

virtual bool Rose::BinaryAnalysis::AsmUnparser::InsnRawBytes::operator() ( bool  ,
const InsnArgs
)
virtual

Default callbacks.

The default is to abort, because if these are called it means one of three things:

  1. The arguments are wrong in the subclass and the subclass therefore isn't providing an implementation when it thinks it is.
  2. The wrong type was used for the second argument. Instruction callbacks use InsnArgs, basic block callbacks use BasicBlockArgs, etc.
  3. The functor was added to the wrong callback list. For instance, an instruction functor was accidently added to one of the function callback lists.

Reimplemented from Rose::BinaryAnalysis::AsmUnparser::UnparserCallback.


The documentation for this class was generated from the following file:
