Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue Class Reference

Description

Type of values manipulated by the IntervalSemantics domain.

Definition at line 39 of file IntervalSemantics.h.

#include <Rose/BinaryAnalysis/InstructionSemantics/IntervalSemantics.h>

Inheritance diagram for Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue:
Inheritance graph
[legend]

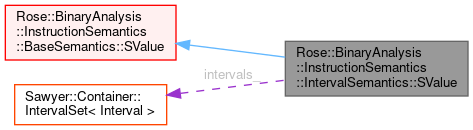

Collaboration diagram for Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue:
Collaboration graph
[legend]

Public Types

using Super = BaseSemantics::SValue
 Base type. More...

using Ptr = SValuePtr
 Shared-ownership pointer. More...

- Public Types inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue
using Ptr = SValuePtr
 Shared-ownership pointer. More...


Public Member Functions

virtual BaseSemantics::SValuePtr bottom_ (size_t nbits) const override
 Data-flow bottom value. More...

virtual BaseSemantics::SValuePtr undefined_ (size_t nbits) const override
 Create a new undefined semantic value. More...

virtual BaseSemantics::SValuePtr unspecified_ (size_t nbits) const override
 Create a new unspecified semantic value. More...

virtual BaseSemantics::SValuePtr number_ (size_t nbits, uint64_t number) const override
 Create a new concrete semantic value. More...

virtual BaseSemantics::SValuePtr copy (size_t new_width=0) const override
 Create a new value from an existing value, changing the width if new_width is non-zero. More...

virtual Sawyer::Optional< BaseSemantics::SValuePtrcreateOptionalMerge (const BaseSemantics::SValuePtr &other, const BaseSemantics::MergerPtr &, const SmtSolverPtr &) const override
 Possibly create a new value by merging two existing values. More...

virtual SValuePtr create (size_t nbits, uint64_t v1, uint64_t v2)
 Construct a ValueType that's constrained to be between two unsigned values, inclusive. More...

virtual SValuePtr create (size_t nbits, const Intervals &intervals)
 Construct a ValueType from a rangemap. More...

virtual SValuePtr create_from_bits (size_t nbits, uint64_t possible_bits)
 Generate ranges from bits. More...

virtual void hash (Combinatorics::Hasher &) const override
 Hash this semantic value. More...

virtual bool isBottom () const override
 Determines whether a value is a data-flow bottom. More...

virtual void print (std::ostream &output, BaseSemantics::Formatter &) const override
 Print a value to a stream using default format. More...

virtual bool may_equal (const BaseSemantics::SValuePtr &other, const SmtSolverPtr &solver=SmtSolverPtr()) const override
 Virtual API. More...

virtual bool must_equal (const BaseSemantics::SValuePtr &other, const SmtSolverPtr &solver=SmtSolverPtr()) const override
 Virtual API. More...

virtual bool is_number () const override
 Virtual API. More...

virtual uint64_t get_number () const override
 Virtual API. More...

const Intervalsget_intervals () const
 Returns the rangemap stored in this value. More...

void set_intervals (const Intervals &intervals)
 Changes the rangemap stored in the value. More...

uint64_t possible_bits () const
 Returns all possible bits that could be set. More...

- Public Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue
virtual SValuePtr boolean_ (bool value) const
 Create a new, Boolean value. More...

SValuePtr createMerged (const SValuePtr &other, const MergerPtr &merger, const SmtSolverPtr &solver) const
 Create a new value by merging two existing values. More...

size_t nBits () const
 Property: value width. More...

bool isConcrete () const
 Determines if the value is a concrete number. More...

Sawyer::Optional< uint64_t > toUnsigned () const
 Converts a concrete value to a native unsigned integer. More...

Sawyer::Optional< int64_t > toSigned () const
 Converts a concrete value to a native signed integer. More...

bool mustEqual (const SValuePtr &other, const SmtSolverPtr &solver=SmtSolverPtr()) const
 Tests two values for equality. More...

bool mayEqual (const SValuePtr &other, const SmtSolverPtr &solver=SmtSolverPtr()) const
 Tests two values for possible equality. More...

bool isTrue () const
 Returns true if concrete non-zero. More...

bool isFalse () const
 Returns true if concrete zero. More...

std::string toString () const
 Render this symbolic expression as a string. More...

std::string comment () const
 Property: Comment. More...

void comment (const std::string &) const
 Property: Comment. More...

void print (std::ostream &) const
 Print a value to a stream using default format. More...

WithFormatter with_format (Formatter &fmt)
 Used for printing values with formatting. More...

WithFormatter operator+ (Formatter &fmt)
 Used for printing values with formatting. More...

WithFormatter operator+ (const std::string &linePrefix)
 Used for printing values with formatting. More...

virtual size_t get_width () const
 Virtual API. More...

virtual void set_width (size_t nbits)
 Virtual API. More...

virtual std::string get_comment () const
 Some subclasses support the ability to add comments to values. More...

virtual void set_comment (const std::string &) const
 Some subclasses support the ability to add comments to values. More...

- Public Member Functions inherited from Sawyer::SharedObject
 SharedObject ()
 Default constructor. More...

 SharedObject (const SharedObject &)
 Copy constructor. More...

virtual ~SharedObject ()
 Virtual destructor. More...

SharedObjectoperator= (const SharedObject &)
 Assignment. More...

- Public Member Functions inherited from Sawyer::SharedFromThis< SValue >
SharedPointer< SValue > sharedFromThis ()
 Create a shared pointer from this. More...

SharedPointer< const SValue > sharedFromThis () const
 Create a shared pointer from this. More...


Static Public Member Functions

static SValuePtr instance ()
 Instantiate a new prototypical value. More...

static SValuePtr instance_bottom (size_t nbits)
 Instantiate a new data-flow-bottom value of specified width. More...

static SValuePtr instance_undefined (size_t nbits)
 Instantiate a new undefined value of particular width. More...

static SValuePtr instance_unspecified (size_t nbits)
 Instantiate a new unspecified value of specific width. More...

static SValuePtr instance_integer (size_t nbits, uint64_t number)
 Instantiate a new concrete value of particular width. More...

static SValuePtr instance_intervals (size_t nbits, const Intervals &intervals)
 Instantiate a new value from a set of intervals. More...

static SValuePtr instance_hull (size_t nbits, uint64_t v1, uint64_t v2)
 Instantiate a new value that's constrained to be between two unsigned values, inclusive. More...

static SValuePtr instance_copy (const SValuePtr &other)
 Instantiate a new copy of an existing value. More...

static SValuePtr instance_from_bits (size_t nbits, uint64_t possible_bits)
 Create a value from a set of possible bits. More...

static SValuePtr promote (const BaseSemantics::SValuePtr &v)
 Promote a base value to an IntevalSemantics value. More...

- Static Public Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue
static SValuePtr promote (const SValuePtr &x)

- Static Public Member Functions inherited from Sawyer::SmallObject
static SynchronizedPoolAllocatorpoolAllocator ()
 Return the pool allocator for this class. More...

static void * operator new (size_t size)

static void operator delete (void *ptr, size_t size)


Protected Member Functions

 SValue (size_t nbits)

 SValue (size_t nbits, uint64_t number)

 SValue (size_t nbits, uint64_t v1, uint64_t v2)

 SValue (size_t nbits, const Intervals &intervals)

- Protected Member Functions inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue
 SValue (size_t nbits)

 SValue (const SValue &other)


Protected Attributes

Intervals intervals_

bool isBottom_

- Protected Attributes inherited from Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue
size_t width


Member Typedef Documentation

Base type.

Definition at line 42 of file IntervalSemantics.h.

Shared-ownership pointer.

Definition at line 45 of file IntervalSemantics.h.

Member Function Documentation

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::instance ( )
inlinestatic

Instantiate a new prototypical value.

Prototypical values are only used for their virtual constructors.

Definition at line 80 of file IntervalSemantics.h.

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::instance_bottom ( size_t  nbits)
inlinestatic

Instantiate a new data-flow-bottom value of specified width.

Definition at line 85 of file IntervalSemantics.h.

Referenced by bottom_().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::instance_undefined ( size_t  nbits)
inlinestatic

Instantiate a new undefined value of particular width.

Currently, there is no distinction between an unspecified value, an undefined value, and an interval that can represent any value of the specified size.

Definition at line 93 of file IntervalSemantics.h.

Referenced by undefined_().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::instance_unspecified ( size_t  nbits)
inlinestatic

Instantiate a new unspecified value of specific width.

Currently, there is no distinction between an unspecified value, an undefined value, and an interval that can represent any value of the specified size.

Definition at line 101 of file IntervalSemantics.h.

Referenced by unspecified_().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::instance_integer ( size_t  nbits,
uint64_t  number
)
inlinestatic

Instantiate a new concrete value of particular width.

Definition at line 106 of file IntervalSemantics.h.

Referenced by number_().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::instance_intervals ( size_t  nbits,
const Intervals intervals
)
inlinestatic

Instantiate a new value from a set of intervals.

Definition at line 111 of file IntervalSemantics.h.

Referenced by create().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::instance_hull ( size_t  nbits,
uint64_t  v1,
uint64_t  v2
)
inlinestatic

Instantiate a new value that's constrained to be between two unsigned values, inclusive.

Definition at line 116 of file IntervalSemantics.h.

Referenced by create().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::instance_copy ( const SValuePtr other)
inlinestatic

Instantiate a new copy of an existing value.

Definition at line 121 of file IntervalSemantics.h.

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::instance_from_bits ( size_t  nbits,
uint64_t  possible_bits
)
static

Create a value from a set of possible bits.

Referenced by create_from_bits().

static SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::promote ( const BaseSemantics::SValuePtr v)
inlinestatic
virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::bottom_ ( size_t  nBits) const
inlineoverridevirtual

Data-flow bottom value.

Returns a new value that represents bottom in a data-flow analysis. If a semantic domain can represent a bottom value then the isBottom predicate is true when invoked on this method's return value. If a semantic domain cannot support a bottom value, then it may return some other value.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

Definition at line 138 of file IntervalSemantics.h.

References instance_bottom().

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::undefined_ ( size_t  nbits) const
inlineoverridevirtual

Create a new undefined semantic value.

The new semantic value will have the same dynamic type as the value on which this virtual method is called. This is the most common way that a new value is created. The unspecified_ method is closely related.

See also
unspecified_

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

Definition at line 141 of file IntervalSemantics.h.

References instance_undefined().

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::unspecified_ ( size_t  nbits) const
inlineoverridevirtual

Create a new unspecified semantic value.

The new semantic value will have the same dynamic type as the value on which this virtual method is called. Undefined (undefined_) and unspecified are closely related. Unspecified values are the same as undefined values except they're instantiated as the result of some machine instruction where the ISA documentation indicates that the value is unspecified (e.g., status flags for x86 shift and rotate instructions).

Most semantic domains make no distinction between undefined and unspecified.

See also
undefined_

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

Definition at line 144 of file IntervalSemantics.h.

References instance_unspecified().

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::number_ ( size_t  nbits,
uint64_t  number
) const
inlineoverridevirtual

Create a new concrete semantic value.

The new value will represent the specified concrete value and have the same dynamic type as the value on which this virtual method is called. This is the most common way that a new constant is created. The number is truncated to contain nbits bits (higher order bits are cleared).

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

Definition at line 148 of file IntervalSemantics.h.

References instance_integer().

virtual BaseSemantics::SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::copy ( size_t  new_width = 0) const
inlineoverridevirtual

Create a new value from an existing value, changing the width if new_width is non-zero.

Increasing the width logically adds zero bits to the most significant side of the value; decreasing the width logically removes bits from the most significant side of the value.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

Definition at line 151 of file IntervalSemantics.h.

virtual Sawyer::Optional<BaseSemantics::SValuePtr> Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::createOptionalMerge ( const BaseSemantics::SValuePtr other,
const BaseSemantics::MergerPtr merger,
const SmtSolverPtr solver
) const
overridevirtual

Possibly create a new value by merging two existing values.

This method optionally returns a new semantic value as the data-flow merge of this and other. If the two inputs are "equal" in some sense of the dataflow implementation then nothing is returned, otherwise a new value is returned. Typical usage is like this:

if (SValuePtr merged = v1->createOptionalMerge(v2).orDefault()) {
std::cout <<"v1 and v2 were merged to " <<*merged <<"\n";
} else {
std::cout <<"no merge is necessary\n";
}
or
@code
SValuePtr merge;
if (v1->createOptionalMerge(v2).assignTo(merged)) {
std::cout <<"v1 and v2 were merged to " <<*merged <<"\n";
} else {
std::cout <<"v1 and v2 are equal in some sense (no merge necessary)\n";
}

If you always want a copy regardless of whether the merge is necessary, then use the createMerged convenience function instead.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

virtual SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::create ( size_t  nbits,
uint64_t  v1,
uint64_t  v2
)
inlinevirtual

Construct a ValueType that's constrained to be between two unsigned values, inclusive.

Definition at line 166 of file IntervalSemantics.h.

References instance_hull().

virtual SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::create ( size_t  nbits,
const Intervals intervals
)
inlinevirtual

Construct a ValueType from a rangemap.

Note that this does not truncate the rangemap to contain only values that would be possible for the ValueType size–see unsignedExtend() for that.

Definition at line 172 of file IntervalSemantics.h.

References instance_intervals().

virtual SValuePtr Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::create_from_bits ( size_t  nbits,
uint64_t  possible_bits
)
inlinevirtual

Generate ranges from bits.

Given the set of bits that could be set, generate a range. We have to be careful here because we could end up generating very large rangemaps: a rangemap where the high 31 bits could be set but the zero bit must be cleared would create a rangemap with 2^31 singleton entries.

Definition at line 179 of file IntervalSemantics.h.

References instance_from_bits().

virtual void Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::hash ( Combinatorics::Hasher ) const
overridevirtual

Hash this semantic value.

Hashes the value by appending it to the specified hasher.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

virtual bool Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::isBottom ( ) const
inlineoverridevirtual

Determines whether a value is a data-flow bottom.

Returns true if this value represents a bottom value for data-flow analysis. Any RiscOperation performed on an operand whose isBottom predicate returns true will itself return a bottom value. This includes operations like "xor x x" which would normally return zero.

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

Definition at line 189 of file IntervalSemantics.h.

virtual void Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::print ( std::ostream &  ,
BaseSemantics::Formatter
) const
overridevirtual

Print a value to a stream using default format.

The value will normally occupy a single line and not contain leading space or line termination. See also, with_format().

Implements Rose::BinaryAnalysis::InstructionSemantics::BaseSemantics::SValue.

virtual bool Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::may_equal ( const BaseSemantics::SValuePtr other,
const SmtSolverPtr solver = SmtSolverPtr()
) const
overridevirtual
virtual bool Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::must_equal ( const BaseSemantics::SValuePtr other,
const SmtSolverPtr solver = SmtSolverPtr()
) const
overridevirtual
virtual bool Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::is_number ( ) const
inlineoverridevirtual
virtual uint64_t Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::get_number ( ) const
inlineoverridevirtual
const Intervals& Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::get_intervals ( ) const
inline

Returns the rangemap stored in this value.

Definition at line 222 of file IntervalSemantics.h.

void Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::set_intervals ( const Intervals intervals)
inline

Changes the rangemap stored in the value.

Definition at line 227 of file IntervalSemantics.h.

uint64_t Rose::BinaryAnalysis::InstructionSemantics::IntervalSemantics::SValue::possible_bits ( ) const

Returns all possible bits that could be set.


The documentation for this class was generated from the following file:
