Rose::Source::Generation::Factory< CRT, API > Class Template Reference

Description

template<typename CRT, typename API>
class Rose::Source::Generation::Factory< CRT, API >

constructs expressions and types for the given API

Template Parameters

CRT	https://en.wikipedia.org/wiki/Curiously_recurring_template_pattern
API	a specialization of Rose::CodeGen::API

Definition at line 34 of file Factory.h.

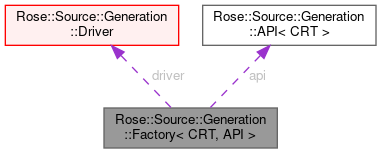

Collaboration diagram for Rose::Source::Generation::Factory< CRT, API >:

Public Types
using	factory_t = Factory< CRT, API >

Public Member Functions
	Factory (Driver &driver_)
template<Object otag, typename... Args>
declaration_t< otag > *	instantiate (symbol_t< otag > *API::*obj, SgNamedType *parent, Args... args) const
	Return an instantiation.
template<Object otag, typename... Args>
reference_t< otag > *	reference (symbol_t< otag > *API::*obj, SgNamedType *parent, Args... args) const
	Return an expression or type referencing the object.
template<Object otag, typename... Args>
SgExpression *	access (symbol_t< otag > *API::*obj, SgExpression *parent, Args... args) const
	Build expression to access a member of the parent expression.
template<Object otag, typename... Args>
access_return_t< otag > *	access (symbol_t< otag > *API::*obj, SgNamedType *parent, Args... args) const
	Build expression or type to access static member and subtype of the parent type.

Public Attributes
Driver &	driver
API	api

Protected Types
template<Object otag>
using	access_return_t = std::conditional_t< otag==Object::a_class||otag==Object::a_typedef, SgType, SgExpression >
	Select return type for access based on Object type.

Static Protected Member Functions
template<Object otag, std::enable_if_t< otag==Object::a_class||otag==Object::a_typedef > * = nullptr>
static SgScopedType *	build_scoped_ref (SgNamedType *lhs, reference_t< otag > *rhs)
template<Object otag, std::enable_if_t< otag !=Object::a_class &&otag !=Object::a_typedef > * = nullptr>
static SgScopedRefExp *	build_scoped_ref (SgNamedType *lhs, reference_t< otag > *rhs)

Member Typedef Documentation

factory_t

template<typename CRT , typename API >

using Rose::Source::Generation::Factory< CRT, API >::factory_t = Factory<CRT, API>

Definition at line 36 of file Factory.h.

access_return_t

template<typename CRT , typename API >

template<Object otag>

using Rose::Source::Generation::Factory< CRT, API >::access_return_t = std::conditional_t<otag == Object::a_class || otag == Object::a_typedef, SgType, SgExpression>

protected

Select return type for access based on Object type.

Template Parameters

otag	must be one of a_class/a_typedef or a_variable/a_function

Definition at line 102 of file Factory.h.

Member Function Documentation

instantiate()

template<typename CRT , typename API >

template<Object otag, typename... Args>

declaration_t< otag > * Rose::Source::Generation::Factory< CRT, API >::instantiate	(	symbol_t< otag > *API::*	obj,
		SgNamedType *	parent,
		Args...	args
	)		const

Return an instantiation.

Template Parameters

otag	must be one of a_class/a_typedef/a_variable/a_function
Args	types of the nodes to use as template arguments (SgType/SgExpression for type/non-type respectively

Parameters

obj	must points to a template symbol
args	nodes to use as template arguments
parent	is used when called by reference which was called by one of the access methods

Returns

a template instantiation

reference()

template<typename CRT , typename API >

template<Object otag, typename... Args>

reference_t< otag > * Rose::Source::Generation::Factory< CRT, API >::reference	(	symbol_t< otag > *API::*	obj,
		SgNamedType *	parent,
		Args...	args
	)		const

Return an expression or type referencing the object.

Args are forwarded to instantiate as needed.

Template Parameters

otag	must be one of a_class/a_typedef/a_variable/a_function
Args	types of template arguments (see instantiate)

Parameters

obj	points to a symbol
args	template arguments (see instantiate)
parent	is used when called by one of the access methods

Returns

a reference expression

access() [1/2]

template<typename CRT , typename API >

template<Object otag, typename... Args>

SgExpression * Rose::Source::Generation::Factory< CRT, API >::access	(	symbol_t< otag > *API::*	obj,
		SgExpression *	parent,
		Args...	args
	)		const

Build expression to access a member of the parent expression.

Args are forwarded to instantiate as needed.

Template Parameters

otag	must be one of a_variable/a_function
Args	types of template arguments (see instantiate)

Parameters

obj	points to a symbol
parent
args	template arguments (see instantiate)

Returns

either . or -> operator with parent as lhs and reference(obj, args...) as rhs

access() [2/2]

template<typename CRT , typename API >

template<Object otag, typename... Args>

access_return_t< otag > * Rose::Source::Generation::Factory< CRT, API >::access	(	symbol_t< otag > *API::*	obj,
		SgNamedType *	parent,
		Args...	args
	)		const

Build expression or type to access static member and subtype of the parent type.

Args are forwarded to instantiate as needed.

otag must be one of a_class/a_typedef or a_variable/a_function Args types of template arguments (see instantiate)

obj points to a symbol lhs args template arguments (see instantiate)

Member Data Documentation

driver

template<typename CRT , typename API >

Driver& Rose::Source::Generation::Factory< CRT, API >::driver

Definition at line 39 of file Factory.h.

api

template<typename CRT , typename API >

API Rose::Source::Generation::Factory< CRT, API >::api

Definition at line 40 of file Factory.h.

---

The documentation for this class was generated from the following file:

• Factory.h
