Rosebud::Ast::Definition Class Reference

Description

Base class for class and property definitions.

Definition at line 254 of file Ast.h.

#include <Rosebud/Ast.h>

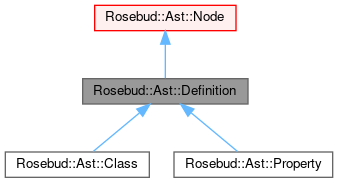

Inheritance diagram for Rosebud::Ast::Definition:

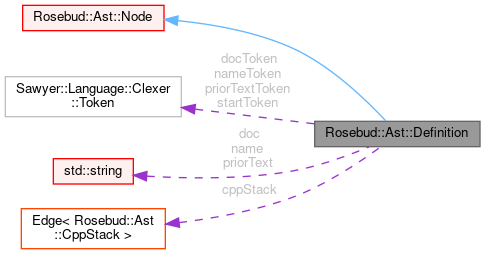

Collaboration diagram for Rosebud::Ast::Definition:

Public Types
using	Ptr = DefinitionPtr
	Shared-ownership pointer.
Public Types inherited from Rosebud::Ast::Node
using	Ptr = NodePtr
Public Types inherited from Sawyer::Tree::Vertex< Node >
using	UserBase = Node
	User's base class.
using	UserBasePtr = std::shared_ptr< UserBase >
	Pointer to user's base class.
using	TraversalEvent = Sawyer::Tree::TraversalEvent
	Alias for traversal events.

Public Member Functions
AttributePtr	findAttribute (const std::string &fqName)
	Finds an attribute with the specified fully qualified name.
Public Member Functions inherited from Rosebud::Ast::Node
template<class T >
std::shared_ptr< T >	findAncestor ()
Public Member Functions inherited from Sawyer::Tree::Vertex< Node >
UserBasePtr	pointer ()
	Returns a shared pointer to this vertex.
std::shared_ptr< T >	isa ()
	Tests whether this object is a certain type.
auto	traverseReverse (const Visitor &visitor)
	Traverse in reverse direction from children to parents.
auto	traverse (const Visitor &visitor)
	Traverse in forward direction from parents to children.
auto	traversePre (const Visitor &visitor)
	Pre-order forward traversal.
auto	traversePost (const Visitor &visitor)
	Post-order forward traversal.
std::shared_ptr< T >	findFirstAncestor ()
	Traversal that finds the closest ancestor of type T or derived from T.
std::shared_ptr< T >	findLastAncestor ()
	Traversal that finds the farthest ancestor of type T or derived from T.
std::vector< std::shared_ptr< T > >	findDescendants ()
	Traversal that finds all the descendants of a particular type.
UserBasePtr	child (size_t i) const
	Returns the pointer for a child.
size_t	nChildren () const
	Returns the number of children.

Public Attributes
Token	startToken
	Token at the start of the definition.
std::string	name
	Unqualified name for the definition.
Token	nameToken
	Token for the definition's unqualified name.
std::string	doc
	Doxygen documentation comment.
Token	docToken
	Token associated with the Doxygen comment.
Edge< CppStack >	cppStack
	C preprocessor pending conditional compilation directives.
std::string	priorText
	Input text before the definition.
Token	priorTextToken
	Token describing the location of the prior text.
EdgeVector< Attribute >	attributes
	Non-null pointer to the list of attributes controlling this property.
Public Attributes inherited from Sawyer::Tree::Vertex< Node >
ReverseEdge	parent
	Pointer to the parent in the tree.

Protected Member Functions
	Definition ()
	Default constructor used only by derived classes.
Protected Member Functions inherited from Sawyer::Tree::Vertex< Node >
virtual void	destructorHelper ()

Member Typedef Documentation

Ptr

using Rosebud::Ast::Definition::Ptr = DefinitionPtr

Shared-ownership pointer.

Definition at line 257 of file Ast.h.

Member Function Documentation

findAttribute()

AttributePtr Rosebud::Ast::Definition::findAttribute

(

const std::string &

fqName

)

Finds an attribute with the specified fully qualified name.

Returns a non-null pointer to the attribute if found, null otherwise.

Member Data Documentation

startToken

Token Rosebud::Ast::Definition::startToken

Token at the start of the definition.

Definition at line 261 of file Ast.h.

name

std::string Rosebud::Ast::Definition::name

Unqualified name for the definition.

Definition at line 264 of file Ast.h.

nameToken

Token Rosebud::Ast::Definition::nameToken

Token for the definition's unqualified name.

Definition at line 267 of file Ast.h.

doc

std::string Rosebud::Ast::Definition::doc

Doxygen documentation comment.

The doxygen comment is a multi-line comment string. The first line may contain spaces for leading indentation.

Definition at line 272 of file Ast.h.

docToken

Token Rosebud::Ast::Definition::docToken

Token associated with the Doxygen comment.

Even though the doc string contains leading spaces, the token does not.

Definition at line 277 of file Ast.h.

cppStack

Edge<CppStack> Rosebud::Ast::Definition::cppStack

C preprocessor pending conditional compilation directives.

This is a non-null child that contains information about the CPP conditional compilation directives that have been started but not yet closed.

Definition at line 283 of file Ast.h.

priorText

std::string Rosebud::Ast::Definition::priorText

Input text before the definition.

This is all the input text that appears before this definition and is not associated with any other definition. If there is a docToken, then its text is excluded from the prior text. Furthermore, white space at the ends of lines is removed, consecutive blank lines are replaced with a single blank line, and leading and trailing blank lines are removed.

Definition at line 290 of file Ast.h.

priorTextToken

Token Rosebud::Ast::Definition::priorTextToken

Token describing the location of the prior text.

This is a generated token of type TOK_OTHER that encloses the priorText value.

Definition at line 295 of file Ast.h.

attributes

EdgeVector<Attribute> Rosebud::Ast::Definition::attributes

Non-null pointer to the list of attributes controlling this property.

Definition at line 298 of file Ast.h.

---

The documentation for this class was generated from the following file:

• Ast.h
