Sg_File_Info Class Reference

#include <Cxx_Grammar.h>

Inheritance diagram for Sg_File_Info:

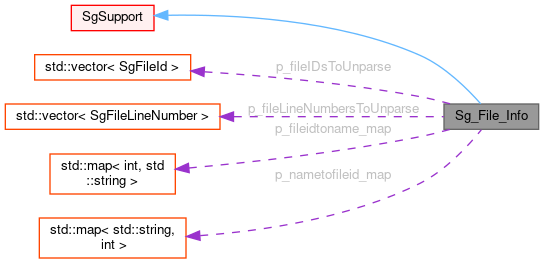

[legend]Collaboration diagram for Sg_File_Info:

[legend]List of all members.

---

Detailed Description

This class represents the location of the code associated with the IR node in the original source code.

This object is used to represent the starting and the ending position of the source code associated with some IR nodes (in other cases the endOfConstruct returnes the same data as the startOfConstruct).

Classification of the IR nodes is included in this object and applies to:

• SgStatements
• SgExpression
• SgInitializedName
• SgFile (and maybe SgDirectory)
• Perhaps also SgTemplateArguments, SgTemplateParameters, SgBaseClass classifications are:
• e_transformation
  The IR node is part of a transformation. The transformation may be assigned to a file, in which case the file id references the file (default is the source file, that reachable from the scope where the transformation is done).
• e_compiler_generated
  The IR node may be part of a compiler generated IR nodes (or subtree, in which case all IR nodes in the subtree are marked as compiler generated). Compiler generated IR nodes include:
  1. implicit casts
  2. instantiated templates (not explicitly specialized)
  3. non-explicit return statements in main function.
  4. (... complete this list)


• e_output_in_code_generation

  1. Used to explicitly makr any compiler generated IR nodes for output (forces template instaiations to be output in the generated source if transformed).
• e_shared
  Marks IR nodes as shared (set by AST merge mechanism). Note that SgTypes and SgSymbols don't have a Sg_File_Info object, but are ALWAYS shared.
  (multiple classifications can co-exist).

Note that p_filename is correctly initialized in the Sg_File_Info object for a SgGlobal, but the p_line and p_col are set to 0 (zero). All other IR nodes have valid Sg_File_Info objects with correct p_filename and p_line and p_col set to nonzero values. A few IR nodes in the AST will have a default value of their Sg_File_Info nodes with p_filename set to "NULL_FILE" and p_line and p_col set to 0 (zero). These are increasingly rare to find in the AST, but since some IR nodes can't be associated with their source position in the AST they persist.

For internal use only.

A pointer for this object is in the SgNode, but it is only valid for SgLocatedNodes and the SgInitializedName. The get_File_Info() member function (and associated get_startOfConstruct() and get_endOfConstruct() member functions) are implemented in the SgNode, for uniformity, but return NULL for all but the SgLocatedNodes and the SgInitializedName IR nodes.

Todo:

isOutputInCodeGeneration() is orthogonal to isCompilerGenerated and isTransformation(). Currently IR nodes that are marked as isTransformation() are output, but these need to be marked as also being isOutputInCodeGeneration() so that orthogonality of the concepts is maintained.

Todo:

It is possible to call get_file_info() on a SgFileInfo object and this needs to be fixed because it does not make any sense. This is because get_file_info is defined as a virtual function on SgNode. Not sure this is a great design, but maybe it just needs a local implementation of a private get_file_info() member function so that it can't be called (can be hidden).

Todo:

Should there be a simpler way to copy a SgFileInfo object than: "new Sg_File_Info(*fileInfo);" or "fileInfo->copy();"; likely not!

Todo:

Define the subset of IR nodes which would all have:

1. Sg_File_Info
2. AstAttributeMechanism
3. SgNode (parent pointer)
   This will make the documentation more intuative. The argument supporting this is that we operate on those IR nodes that correspond to the visual representation of the source code (so we can exclude SgSymbols, and SgTypes). Having the same subset of IR nodes permits a simpler documentation of the API and intuition as to where it applies. A likely subset would be:
4. SgLocatedNodes
5. SgFile
6. SgDirectory (questionable)
7. SgInitializedName
8. SgBaseClass
9. SgTemplateArgument
10. SgTemplateParameter

Todo:

Remove the functions: isCompilerGeneratedNodeToBeUnparsed(), setCompilerGeneratedNodeToBeUnparsed(), and unsetCompilerGeneratedNodeToBeUnparsed() from where they are called.

Todo:

Consider putting the endOfConstruct information into the single Sg_File_Info object. Currently the SgLocatedNode stores two Sg_File_Info objects, one for the beginning and the end of each construct. This would save significant space in the AST. Additional information in the Sg_File_Info could be:

• offset from starting line number to the end of construct
• flag for if end of construct is located in the same file as the start of construct

Todo:

Consider using "short int" instead of "int" for the file_id, line, and col (and maybe the classificationBitField) to reduce the size of the data structure. Padding is not a significant issue since data structures are allocated in contiguious memory (except for padding to at least the nearest byte if bit field widths are used.

See also:

Example of using a Sg_File_Info object

Public Types
typedef SgSupport	base_node_type
	e_transformation = 0x1
	e_compiler_generated = 0x2
	e_output_in_code_generation = 0x4
	e_shared = 0x8
	e_frontend_specific = 0x10
	e_source_position_unavailable_in_frontend = 0x20
	e_comment_or_directive = 0x40
	e_token = 0x80
	COPY_FILE_ID = -1
	NULL_FILE_ID = -2
	TRANSFORMATION_FILE_ID = -3
	COMPILER_GENERATED_FILE_ID = -4
	COMPILER_GENERATED_MARKED_FOR_OUTPUT_FILE_ID = -5
	BAD_FILE_ID = -6
	static_variant = V_Sg_File_Info
enum	classifier {   e_transformation = 0x1,   e_compiler_generated = 0x2,   e_output_in_code_generation = 0x4,   e_shared = 0x8,   e_frontend_specific = 0x10,   e_source_position_unavailable_in_frontend = 0x20,   e_comment_or_directive = 0x40,   e_token = 0x80 }
	Enum type containing classifications if IR nodes. More...
enum	p_fileflags {   COPY_FILE_ID = -1,   NULL_FILE_ID = -2,   TRANSFORMATION_FILE_ID = -3,   COMPILER_GENERATED_FILE_ID = -4,   COMPILER_GENERATED_MARKED_FOR_OUTPUT_FILE_ID = -5,   BAD_FILE_ID = -6 }
	Enum to hold previously common default values for filename used by the default and static SgNULL_File constructors. More...
enum	{ static_variant = V_Sg_File_Info }
	static variant value More...
Public Member Functions
virtual SgNode *	copy (SgCopyHelp &help) const
	Sg_File_Info ()
	This is the less useful default constructor.
	Sg_File_Info (const std::string &filename, int line=0, int col=0)
	Sg_File_Info (const Sg_File_Info &X)
	This the copy constructor (deep copy made).
	Sg_File_Info (int file_id, int line, int column)
void	post_construction_initialization ()
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.
void	set_filename (const char *filename) ROSE_DEPRECATED_FUNCTION
void	set_filenameString (const std::string &filename)
void	set_line (int line)
	This function sets the line number of the construct's association with source code in the source file named by p_filename.
void	set_col (int n)
void	display (const std::string label) const
void	display () const
std::string	displayString (const std::string &label="") const
const char *	get_filename () const ROSE_DEPRECATED_FUNCTION
	Returns filename of source code associated with IR node.
const std::string &	get_filenameString () const
int	get_line () const
	Returns the line number of the associated code for this IR node.
int	get_col () const
	Returns the column number of the associated code for this IR node.
void	set_file_id (int file_id)
int	get_file_id () const
std::string	get_raw_filename () const
	Returns filename of source code associated with IR node.
int	get_raw_line () const
	Returns the line number of the associated code for this IR node.
int	get_raw_col () const
	Returns the column number of the associated code for this IR node.
void	updateSourcePosition (Sg_File_Info *update)
bool	hasPositionInSource () const
	No earthly idea what this function does!
bool	isSameFile (SgFile *file) const
bool	isSameFile (Sg_File_Info *fileInfo) const
bool	isSameFile (const Sg_File_Info &fileInfo) const
bool	isTransformation () const
	Access function for classification bit field.
bool	isCompilerGenerated () const
	Returns true only if compiler generated (either by the front-end or by ROSE).
bool	isCompilerGeneratedNodeToBeUnparsed () const ROSE_DEPRECATED_FUNCTION
	Returns true only if compiler generated and required to be unparsed in generated code.
bool	isOutputInCodeGeneration () const
	Returns true only if required to be unparsed in generated code.
bool	isShared () const
	Returns true only if shared internally (either by the front-end or by ROSE).
bool	isFrontendSpecific () const
bool	isSourcePositionUnavailableInFrontend () const
void	unsetSourcePositionUnavailableInFrontend ()
void	setSourcePositionUnavailableInFrontend ()
bool	isCommentOrDirective () const
void	unsetCommentOrDirective ()
void	setCommentOrDirective ()
bool	isToken () const
void	unsetToken ()
void	setToken ()
void	unsetTransformation ()
	Set/unset functions for classification bit field.
void	setTransformation ()
	Marks an IR node to be a transformation if it is not one already.
void	unsetCompilerGeneratedNodeToBeUnparsed () ROSE_DEPRECATED_FUNCTION
	Mark as compiler generated but as required to be output by unparser (e.g. required template instatiations).
void	setCompilerGeneratedNodeToBeUnparsed () ROSE_DEPRECATED_FUNCTION
	Marks IR node as compiler generated but required in the generated source (e.g. requied templates).
void	unsetOutputInCodeGeneration ()
	Mark as to be output by the unparser (code generator).
void	setOutputInCodeGeneration ()
	Marks IR node as compiler generated but required in the generated source (e.g. requied templates).
void	unsetShared ()
	Support for shared IR nodes (shared via AST merge mechanism).
void	setShared ()
	Marks IR node as shared.
void	unsetFrontendSpecific ()
void	setFrontendSpecific ()
void	addFileToUnparse (int file_id)
	Add files to the set that should be able to unparse the node.
bool	shouldUnparse (int file_id)
	Should this node be unparsed by this file?
void	unsetCompilerGenerated ()
	Unmarks IR node as compiler generated.
void	setCompilerGenerated ()
	Marks IR node as compiler generated.
unsigned int	get_classificationBitField (void) const
	Get whole bit field fr modifier set.
void	set_classificationBitField (unsigned int)
void	set_isPartOfTransformation (bool isPartOfTransformation) ROSE_DEPRECATED_FUNCTION
	This function marks an IR nodes as being part of a transformation, this function is deprecated.
bool	get_isPartOfTransformation () ROSE_DEPRECATED_FUNCTION
	This function indicates of the IR nodes is part of a transformation.
void	register_node (SgLocatedNode *node) ROSE_DEPRECATED_FUNCTION
void	deregister_node (SgLocatedNode *node) ROSE_DEPRECATED_FUNCTION
bool	ok () const
Sg_File_Info &	operator= (const Sg_File_Info &X)
virtual std::string	class_name () const
	Copies AST (whole subtree, depending on the SgCopyHelp class returns a string representing the class name.
virtual VariantT	variantT () const
	returns new style SageIII enum values
void *	operator new (size_t size)
	returns pointer to newly allocated IR node
void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)
void	operator delete (void *pointer)
virtual std::vector< SgNode * >	get_traversalSuccessorContainer ()
	FOR INTERNAL USE within ROSE traverals mechanism only.
virtual std::vector< std::string >	get_traversalSuccessorNamesContainer ()
	FOR INTERNAL USE within ROSE traverals mechanism only.
virtual size_t	get_numberOfTraversalSuccessors ()
virtual SgNode *	get_traversalSuccessorByIndex (size_t idx)
virtual size_t	get_childIndex (SgNode *child)
virtual RTIReturnType	roseRTI ()
	FOR INTERNAL USE Access to Runtime Type Information (RTI) for this IR nodes.
virtual const char *	sage_class_name () const ROSE_DEPRECATED_FUNCTION
void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
virtual void	accept (ROSE_VisitorPattern &visitor)
	DXN (08/09/2010): support for the classic visitor pattern done in GoF.
virtual bool	isInMemoryPool ()
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.
virtual void	checkDataMemberPointersIfInMemoryPool ()
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.
virtual std::vector< std::pair< SgNode *, std::string > >	returnDataMemberPointers () const
	FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools
virtual void	processDataMemberReferenceToPointers (ReferenceToPointerHandler *)
	FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools
virtual long	getChildIndex (SgNode *childNode) const
	FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.
	Sg_File_Info (const Sg_File_InfoStorageClass &source)
Sg_File_Info *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.
SgFileIdList	get_fileIDsToUnparse () const
void	set_fileIDsToUnparse (SgFileIdList fileIDsToUnparse)
virtual	~Sg_File_Info ()
	This is the destructor.
Static Public Member Functions
static int	addFilenameToMap (const std::string &filename)
	Access function to permit files referenced in Dwarf to be mapped to integers using the same scheme as for source code.
static int	numberOfSourceFiles ()
	Returns the number of entries in the filename map.
static void	display_static_data (const std::string label)
static Sg_File_Info *	generateDefaultFileInfo ()
	Static function to return new Sg_File_Info object set to default values.
static Sg_File_Info *	generateDefaultFileInfoForTransformationNode ()
	Static function to return new Sg_File_Info object set to default values appropriate for transformations.
static Sg_File_Info *	generateFileInfoForTransformationNode (int file_id)
	Static function to return new Sg_File_Info object set to default values appropriate for transformations that are not in the source file.
static Sg_File_Info *	generateFileInfoForTransformationNode (std::string filename)
static Sg_File_Info *	generateDefaultFileInfoForCompilerGeneratedNode ()
	Static function to return new Sg_File_Info object set to default values appropriate for compiler generated code.
static const std::string &	getFilenameFromID (int id)
static int	getIDFromFilename (std::string filename)
static std::map< int, std::string > &	get_fileidtoname_map ()
	Access function for static datamember fileidtoname_map.
static void	set_fileidtoname_map (std::map< int, std::string > &X)
	Access function for map of file names.
static std::map< std::string, int > &	get_nametofileid_map ()
	Access function for static datamember nametofileid_map.
static void	set_nametofileid_map (std::map< std::string, int > &X)
	Access function for map of file names.
static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.
static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.
static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern.
static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.
Protected Attributes
int	p_file_id
	This is a key that maps integers to file names, it prevents redundent storage of filename strings.
int	p_line
	This is the line number of the location of the source code for this IR node.
int	p_col
	This is the column number of the location of the source code for this IR node.
unsigned int	p_classificationBitField
	This is mechanism for classification of the IR node.
SgFileIdList	p_fileIDsToUnparse
	This set contains a list of all file ids for which the accompanying IR node should be unparsed.
Static Protected Attributes
static std::map< int, std::string >	p_fileidtoname_map
	This is a static STL map of file id (integers) to file names (strings).
static std::map< std::string, int >	p_nametofileid_map
	This is a static STL map of file names (strings) to file id (integers).
Friends
class	AST_FILE_IO
class	Sg_File_InfoStorageClass
class	AstSpecificDataManagingClass
class	AstSpecificDataManagingClassStorageClass
bool	operator== (const Sg_File_Info &X, const Sg_File_Info &Y)
	This relational operator tests two Sg_File_Info objects for equal position information.
bool	operator!= (const Sg_File_Info &X, const Sg_File_Info &Y)
	This relational operator tests two Sg_File_Info objects for unequal position information.
bool	operator> (const Sg_File_Info &X, const Sg_File_Info &Y)
	This relational operator tests two Sg_File_Info objects for X being after Y in the same file.
bool	operator< (const Sg_File_Info &X, const Sg_File_Info &Y)
	This relational operator tests two Sg_File_Info objects for X being before Y in the same file.
bool	operator>= (const Sg_File_Info &X, const Sg_File_Info &Y)
	This relational operator tests two Sg_File_Info objects for X being at the same position or after Y in the same file.
bool	operator<= (const Sg_File_Info &X, const Sg_File_Info &Y)
	This relational operator tests two Sg_File_Info objects for X being at the same position or before Y in the same file.
Sg_File_Info *	isSg_File_Info (SgNode *s)
	Casts pointer from base class to derived class.
const Sg_File_Info *	isSg_File_Info (const SgNode *s)
	Casts pointer from base class to derived class (for const pointers).
Sg_File_Info *	Sg_File_Info_getPointerFromGlobalIndex (unsigned long globalIndex)
	Constructor for use by AST File I/O MechanismTypedef used for low level memory access. Typedef used to hold memory addresses as values. Methods to find the pointer to a global and local index.
unsigned long	Sg_File_Info_getNumberOfValidNodesAndSetGlobalIndexInFreepointer (unsigned long)
	Get the size of the memory pool.
void	Sg_File_Info_clearMemoryPool ()
void	Sg_File_Info_extendMemoryPoolForFileIO (unsigned long)
void	Sg_File_Info_getNextValidPointer (std::pair< Sg_File_Info *, std::vector< unsigned char * >::const_iterator > &)
void	Sg_File_Info_resetValidFreepointers ()

---

Member Typedef Documentation

typedef SgSupport Sg_File_Info::base_node_type

Reimplemented from SgSupport.

---

Member Enumeration Documentation

enum Sg_File_Info::classifier

Enum type containing classifications if IR nodes.

This is part of the classification mechanism for IR nodes within ROSE. Compiler generated code is not output in the code generation phase, but some compiler generated IR nodes must be output so such nodes are explicitly marked within the classification process (implemented in ASTFixes.C).

• Examples of transformation IR nodes include:
  1. Any relocated AST subtrees
  2. Any new IR nodes
• Examples of compiler-generated IR nodes include:
  1. Any implicit or unnecessary casts not explicitly represented in the source code
  2. Instantiated templates
• Examples of compiler-generated code marked for output (in code generation phase) include:
  1. Any transformed template instantiations
  2. required templates assigned to specific files (see ROSE prelinking details)
• Examples of shared IR nodes include:
  1. All types (not implemented yet)
  2. All IR nodes shared across originally separate ASTs (see AST Merge Mechanism)
• Examples of frontend specific IR nodes include:
  1. float __builtin_acosf (float __builtin__x);
  2. define __builtin_va_start va_start
  3. All functions and variables defined in "rose_edg_required_macros_and_functions.h"

For internal use only.

We need constructors taking a value of this type.

Enumerator:

e_transformation	classify as a transformation
e_compiler_generated	classify as compiler generated
e_output_in_code_generation	classify as required when generating code in unparser (orthogonal concept to transformation and compiler generated)
e_shared	classify as a shared IR node (part of evolving support for AST merging)
e_frontend_specific	classify as frontend specific (e.g. gnu compatable function from rose_edg_required_macros_and_functions.h)
e_source_position_unavailable_in_frontend	classify as explictly unabailable from front-end
e_comment_or_directive	classify as a comment or directive (not a part of the language grammar)
e_token	classify as a token from the parser (not a part of the language grammar)

enum Sg_File_Info::p_fileflags

Enum to hold previously common default values for filename used by the default and static SgNULL_File constructors.

For internal use only.

These values can and likely should disappear in the future.

Enumerator:

COPY_FILE_ID	default value (equivalent to filename with "COPY")
NULL_FILE_ID	value equivalent to filename with "NULL_FILE"
TRANSFORMATION_FILE_ID	value for all nodes marked as part of a translation
COMPILER_GENERATED_FILE_ID	value for compiler generated IR nodes (NOT marked for output)
COMPILER_GENERATED_MARKED_FOR_OUTPUT_FILE_ID	value for compiler generated IR nodes (marked for output, deprecated value)
BAD_FILE_ID	value returned if there is no file id mapped to given filename

anonymous enum

static variant value

Enumerator:

static_variant

---

Constructor & Destructor Documentation

Sg_File_Info::Sg_File_Info

(

)

This is the less useful default constructor.

This constructor builds the Sg_File_Info base class.

For internal use only.

This constructor should be deprecated since we don't want it to be used. It's presence is historical, since it was previously used a lot (inappropriately). Before it is removed we likely need a constructor that can take a Sg_File_Info::classifier enum value.

See also:

Example:create an Sg_File_Info object

Sg_File_Info::Sg_File_Info	(	const std::string &	filename,
		int	line = 0,
		int	col = 0
	)

Sg_File_Info::Sg_File_Info

(

const Sg_File_Info &

X

)

This the copy constructor (deep copy made).

For internal use only.

This constructor does a deep copy of all data in the Sg_File_Info object.

See also:

Example:create an Sg_File_Info object

Sg_File_Info::Sg_File_Info	(	int	file_id,
		int	line,
		int	column
	)

Sg_File_Info::Sg_File_Info

(

const Sg_File_InfoStorageClass &

source

)

Sg_File_Info::~Sg_File_Info

(

)

[virtual]

This is the destructor.

There is nothing to delete in this object.

---

Member Function Documentation

virtual SgNode* Sg_File_Info::copy

(

SgCopyHelp &

help

)

const [virtual]

Reimplemented from SgSupport.

void Sg_File_Info::post_construction_initialization

(

)

[virtual]

Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

Reimplemented from SgNode.

static int Sg_File_Info::addFilenameToMap

(

const std::string &

filename

)

[static]

Access function to permit files referenced in Dwarf to be mapped to integers using the same scheme as for source code.

static int Sg_File_Info::numberOfSourceFiles

(

)

[static]

Returns the number of entries in the filename map.

void Sg_File_Info::set_filename

(

const char *

filename

)

void Sg_File_Info::set_filenameString

(

const std::string &

filename

)

Sg_File_Info::set_line

(

int

line

)

This function sets the line number of the construct's association with source code in the source file named by p_filename.

Returns:

Returns an integer.

void Sg_File_Info::set_col

(

int

n

)

void Sg_File_Info::display

(

const std::string

label

)

const

void Sg_File_Info::display

(

)

const

std::string Sg_File_Info::displayString

(

const std::string &

label = ""

)

const

static void Sg_File_Info::display_static_data

(

const std::string

label

)

[static]

Sg_File_Info::get_filename

(

)

const

Returns filename of source code associated with IR node.

The filename returned is manipulated under some contitions:

• if isTransformation() is true then "transformation" is returned as the filename.
• if isCompilerGenerated() is true then "comilerGenerated" is returned as the filename.
• if isCompilerGeneratedNodeToBeUnparsed() is true then "comilerGenerated" is returned as the filename.

For internal use only.

For debugging purposes it is an error to ask for the filename from any IR node for which hasPositionInSource() == false.

Returns:

Returns char* (will return C++ string in the future).

const std::string& Sg_File_Info::get_filenameString

(

)

const

Sg_File_Info::get_line

(

)

const

Returns the line number of the associated code for this IR node.

Returns:

Returns integer.

Sg_File_Info::get_col

(

)

const

Returns the column number of the associated code for this IR node.

Returns:

Returns integer

void Sg_File_Info::set_file_id

(

int

file_id

)

int Sg_File_Info::get_file_id

(

)

const

Sg_File_Info::get_raw_filename

(

)

const

Returns filename of source code associated with IR node.

The filename is not manipulated! The value of p_filename is returned whatever the IR node classification.

For internal use only.

This is useful for debugging.

Returns:

Returns a C++ string object.

Sg_File_Info::get_raw_line

(

)

const

Returns the line number of the associated code for this IR node.

Returns:

Returns integer.

Sg_File_Info::get_raw_col

(

)

const

Returns the column number of the associated code for this IR node.

Returns:

Returns

void Sg_File_Info::updateSourcePosition

(

Sg_File_Info *

update

)

Sg_File_Info::hasPositionInSource

(

)

const

No earthly idea what this function does!

Todo:

figure out what this does, it appears to be called in two places (attachment of comments and CPP directives (attachPreprocessingInfo.C) and marking template specializations for output (markTemplateSpecializationsForOutput.C)).

Returns:

Returns bool.

bool Sg_File_Info::isSameFile

(

SgFile *

file

)

const

bool Sg_File_Info::isSameFile

(

Sg_File_Info *

fileInfo

)

const

bool Sg_File_Info::isSameFile

(

const Sg_File_Info &

fileInfo

)

const

Sg_File_Info::isTransformation

(

)

const

Access function for classification bit field.

Returns:

Returns bool.

Sg_File_Info::isCompilerGenerated

(

)

const

Returns true only if compiler generated (either by the front-end or by ROSE).

For internal use only.

We do not presently distinguish between compiler generated code from EDG or by ROSE. For example template instatiations are not marked as compiler generated by EDG, but if ROSE generates specializations from instatioated templates then they are marked by ROSE as being compiler generated.

Returns:

Returns bool.

Sg_File_Info::isCompilerGeneratedNodeToBeUnparsed

(

)

const

Returns true only if compiler generated and required to be unparsed in generated code.

For internal use only.

Templates instatiated by ROSE are marked as compiler generated, but only those instatiated templates that are used in the source file are required and so only those must be unparsed in the generated code.

Deprecated:

This now calls isOutputInCodeGeneration(), and will be removed soon.

Returns:

Returns bool.

Sg_File_Info::isOutputInCodeGeneration

(

)

const

Returns true only if required to be unparsed in generated code.

For internal use only.

Templates instatiated by ROSE are marked as compiler generated, but only those instatiated templates that are used in the source file are required and so only those must be unparsed in the generated code. Note that currently all transformed IR nodes are implicitly considered to be marked as outputInCodeGeneration, but this will be made an explicit requirement in the future.

Returns:

Returns bool.

Sg_File_Info::isShared

(

)

const

Returns true only if shared internally (either by the front-end or by ROSE).

For internal use only.

This is a new classification supporting the AST merge mechanism. Currently numerous types of IR nodes that are shared (SgType, SgSymbol, many non-defining declarations, etc.) are not explicitly marked as shared. This may be correct in a future release (requires more thought).

Returns:

Returns bool.

bool Sg_File_Info::isFrontendSpecific

(

)

const

bool Sg_File_Info::isSourcePositionUnavailableInFrontend

(

)

const

void Sg_File_Info::unsetSourcePositionUnavailableInFrontend

(

)

void Sg_File_Info::setSourcePositionUnavailableInFrontend

(

)

bool Sg_File_Info::isCommentOrDirective

(

)

const

void Sg_File_Info::unsetCommentOrDirective

(

)

void Sg_File_Info::setCommentOrDirective

(

)

bool Sg_File_Info::isToken

(

)

const

void Sg_File_Info::unsetToken

(

)

void Sg_File_Info::setToken

(

)

Sg_File_Info::unsetTransformation

(

)

Set/unset functions for classification bit field.

Returns:

Returns void.

Sg_File_Info::setTransformation

(

)

Marks an IR node to be a transformation if it is not one already.

Returns:

Returns void.

Sg_File_Info::unsetCompilerGeneratedNodeToBeUnparsed

(

)

Mark as compiler generated but as required to be output by unparser (e.g. required template instatiations).

Deprecated:

This now calls unsetOutputInCodeGeneration(), and will be removed soon.

Returns:

Returns void.

Sg_File_Info::setCompilerGeneratedNodeToBeUnparsed

(

)

Marks IR node as compiler generated but required in the generated source (e.g. requied templates).

Deprecated:

This now calls setOutputInCodeGeneration(), and will be removed soon.

Returns:

Returns void.

Sg_File_Info::unsetOutputInCodeGeneration

(

)

Mark as to be output by the unparser (code generator).

Returns:

Returns void.

Sg_File_Info::setOutputInCodeGeneration

(

)

Marks IR node as compiler generated but required in the generated source (e.g. requied templates).

Returns:

Returns void.

Sg_File_Info::unsetShared

(

)

Support for shared IR nodes (shared via AST merge mechanism).

Returns:

Returns void.

Sg_File_Info::setShared

(

)

Marks IR node as shared.

Returns:

Returns void.

void Sg_File_Info::unsetFrontendSpecific

(

)

void Sg_File_Info::setFrontendSpecific

(

)

void Sg_File_Info::addFileToUnparse

(

int

file_id

)

Add files to the set that should be able to unparse the node.

bool Sg_File_Info::shouldUnparse

(

int

file_id

)

Should this node be unparsed by this file?

Sg_File_Info::unsetCompilerGenerated

(

)

Unmarks IR node as compiler generated.

Returns:

Returns void.

Sg_File_Info::setCompilerGenerated

(

)

Marks IR node as compiler generated.

Returns:

Returns void.

Sg_File_Info::generateDefaultFileInfo

(

)

[static]

Static function to return new Sg_File_Info object set to default values.

Returns:

Returns pointer to Sg_File_Info.

Sg_File_Info::generateDefaultFileInfoForTransformationNode

(

)

[static]

Static function to return new Sg_File_Info object set to default values appropriate for transformations.

This function calls setOutputInCodeGeneration() and sets the file_id to be TRANSFORMATION_FILE_ID.

Returns:

Returns pointer to Sg_File_Info.

Sg_File_Info::generateFileInfoForTransformationNode

(

int

file_id

)

[static]

Static function to return new Sg_File_Info object set to default values appropriate for transformations that are not in the source file.

Static function which allows specification of transformation with assignement to a specific file (where it would be unparsed). This function will call setOutputInCodeGeneration() and sets the file_id to a non-negative value. This function is useful when transformation to a program happen within a header file (e.g. including a header file as part of a transformation).

Setting the file_id to the current source file should have the same result (semantics) as Sg_File_Info::generateDefaultFileInfoForTransformationNode().

Returns:

Returns pointer to Sg_File_Info.

static Sg_File_Info* Sg_File_Info::generateFileInfoForTransformationNode

(

std::string

filename

)

[static]

Sg_File_Info::generateDefaultFileInfoForCompilerGeneratedNode

(

)

[static]

Static function to return new Sg_File_Info object set to default values appropriate for compiler generated code.

Returns:

Returns pointer to Sg_File_Info.

unsigned int Sg_File_Info::get_classificationBitField

(

void

)

const

Get whole bit field fr modifier set.

void Sg_File_Info::set_classificationBitField

(

unsigned

int

)

Sg_File_Info::set_isPartOfTransformation

(

bool

isPartOfTransformation

)

This function marks an IR nodes as being part of a transformation, this function is deprecated.

Returns:

Returns void.

Deprecated:

This function is deprecated.

Sg_File_Info::get_isPartOfTransformation

(

)

This function indicates of the IR nodes is part of a transformation.

Returns:

Returns bool

Deprecated:

This function is deprecated.

void Sg_File_Info::register_node

(

SgLocatedNode *

node

)

void Sg_File_Info::deregister_node

(

SgLocatedNode *

node

)

bool Sg_File_Info::ok

(

)

const

static const std::string& Sg_File_Info::getFilenameFromID

(

int

id

)

[static]

static int Sg_File_Info::getIDFromFilename

(

std::string

filename

)

[static]

Sg_File_Info& Sg_File_Info::operator=

(

const Sg_File_Info &

X

)

static std::map<int, std::string>& Sg_File_Info::get_fileidtoname_map

(

)

[static]

Access function for static datamember fileidtoname_map.

static void Sg_File_Info::set_fileidtoname_map

(

std::map< int, std::string > &

X

)

[static]

Access function for map of file names.

static std::map<std::string, int>& Sg_File_Info::get_nametofileid_map

(

)

[static]

Access function for static datamember nametofileid_map.

static void Sg_File_Info::set_nametofileid_map

(

std::map< std::string, int > &

X

)

[static]

Access function for map of file names.

virtual std::string Sg_File_Info::class_name

(

)

const [virtual]

Copies AST (whole subtree, depending on the SgCopyHelp class returns a string representing the class name.

Reimplemented from SgSupport.

virtual VariantT Sg_File_Info::variantT

(

)

const [virtual]

returns new style SageIII enum values

Reimplemented from SgSupport.

void* Sg_File_Info::operator new

(

size_t

size

)

returns pointer to newly allocated IR node

Reimplemented from SgSupport.

void Sg_File_Info::operator delete	(	void *	pointer,
		size_t	size
	)

deallocated memory for IR node (returns memory to memory pool for reuse)

Reimplemented from SgSupport.

void Sg_File_Info::operator delete

(

void *

pointer

)

Reimplemented from SgSupport.

static size_t Sg_File_Info::numberOfNodes

(

)

[static]

Returns the total number of IR nodes of this type.

Reimplemented from SgSupport.

static size_t Sg_File_Info::memoryUsage

(

)

[static]

Returns the size in bytes of the total memory allocated for all IR nodes of this type.

Reimplemented from SgSupport.

virtual std::vector<SgNode*> Sg_File_Info::get_traversalSuccessorContainer

(

)

[virtual]

FOR INTERNAL USE within ROSE traverals mechanism only.

This function builds and returns a copy of ordered container holding pointers to children of this node in a traversal. It is associated with the definition of a tree that is travered by the AST traversal mechanism; a tree that is embeded in the AST (which is a more general graph). This function is used within the implementation of the AST traversal and has a semantics may change in subtle ways that makes it difficult to use in user code. It can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Warning:

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns:

Returns ordered STL Container of pointers to children nodes in AST.

Reimplemented from SgSupport.

virtual std::vector<std::string> Sg_File_Info::get_traversalSuccessorNamesContainer

(

)

[virtual]

FOR INTERNAL USE within ROSE traverals mechanism only.

This function builds and returns a copy of ordered container holding strings used to name data members that are traversed in the IR node. It is associated with the definition of a tree that is travered by the AST traversal mechanism; a tree that is embeded in the AST (which is a more general graph). This function is used within the implementation of the AST traversal and has a semantics may change in subtle ways that makes it difficult to use in user code. It can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Warning:

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Each string is a name of a member variable holding a pointer to a child in the AST. The names are the same as used in the generated enums for accessing attributes in a traversal. The order is the same in which they are traversed and the same in which the access enums are defined. Therefore this method can be used to get the corresponding name (string) of an access enum which allows to produce more meaningful messages for attribute computations.

Returns:

Returns ordered STL container of names (strings) of access names to children nodes in AST.

Reimplemented from SgSupport.

virtual size_t Sg_File_Info::get_numberOfTraversalSuccessors

(

)

[virtual]

Reimplemented from SgSupport.

virtual SgNode* Sg_File_Info::get_traversalSuccessorByIndex

(

size_t

idx

)

[virtual]

Reimplemented from SgSupport.

virtual size_t Sg_File_Info::get_childIndex

(

SgNode *

child

)

[virtual]

Reimplemented from SgSupport.

virtual RTIReturnType Sg_File_Info::roseRTI

(

)

[virtual]

FOR INTERNAL USE Access to Runtime Type Information (RTI) for this IR nodes.

This function provides runtime type information for accessing the structure of the current node. It is useful for generating code which would dump out or rebuild IR nodes.

Returns:

Returns a RTIReturnType object (runtime type information).

Reimplemented from SgSupport.

virtual const char* Sg_File_Info::sage_class_name

(

)

const [virtual]

returns a C style string (char*) representing the class name

Reimplemented from SgSupport.

void Sg_File_Info::executeVisitorMemberFunction

(

ROSE_VisitorPattern &

visitor

)

FOR INTERNAL USE Support for visitor pattern.

Reimplemented from SgSupport.

virtual void Sg_File_Info::accept

(

ROSE_VisitorPattern &

visitor

)

[virtual]

DXN (08/09/2010): support for the classic visitor pattern done in GoF.

Reimplemented from SgSupport.

static void Sg_File_Info::traverseMemoryPoolNodes

(

ROSE_VisitTraversal &

visit

)

[static]

FOR INTERNAL USE Support for visitor pattern.

Reimplemented from SgSupport.

static void Sg_File_Info::traverseMemoryPoolVisitorPattern

(

ROSE_VisitorPattern &

visitor

)

[static]

FOR INTERNAL USE Support for visitor pattern.

Reimplemented from SgSupport.

static void Sg_File_Info::visitRepresentativeNode

(

ROSE_VisitTraversal &

visit

)

[static]

FOR INTERNAL USE Support for type-based traversal.

Reimplemented from SgSupport.

virtual bool Sg_File_Info::isInMemoryPool

(

)

[virtual]

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgSupport.

virtual void Sg_File_Info::checkDataMemberPointersIfInMemoryPool

(

)

[virtual]

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgSupport.

virtual std::vector<std::pair<SgNode*,std::string> > Sg_File_Info::returnDataMemberPointers

(

)

const [virtual]

FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

This functions is part of general support for many possible tools to operate on the AST. The forms a list of ALL IR node pointers used by each IR node, and is a supperset of the get_traversalSuccessorContainer(). It is (I think) less than the set of pointers used by the AST file I/O. This is part of work implemented by Andreas, and support tools such as the AST graph generation.

Warning:

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns:

STL vector of pairs of SgNode* and strings

Reimplemented from SgSupport.

virtual void Sg_File_Info::processDataMemberReferenceToPointers

(

ReferenceToPointerHandler *

)

[virtual]

FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

This functions similar to returnDataMemberPointers() except that it passes references to a handler object. As a result there is FAR more damage that can be done by using this function, but it is type-safe. This is provided for support of internal tools that operate on the AST, e.g the AST Merge mechanism.

Warning:

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Reimplemented from SgSupport.

virtual long Sg_File_Info::getChildIndex

(

SgNode *

childNode

)

const [virtual]

FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

This function returns a unique value for the input childNode in set of children at this IR node. Note that a negative value indicates that the input node is not a child. This is the basis for the implementation of the isChild(SgNode*) member function. Data members that are NULL in the IR node are counted internally (so that this function returns value that could be statically defined, and so are not dynamically determined).

Warning:

The mapping on children to integer values could change from release to release of ROSE.

Returns:

long

Reimplemented from SgSupport.

Sg_File_Info* Sg_File_Info::addRegExpAttribute	(	std::string	s,
		AstRegExAttribute *	a
	)

Support for AST matching using regular expression.

This support is incomplete and the subject of current research to define RegEx trees to support inexact matching.

Reimplemented from SgSupport.

SgFileIdList Sg_File_Info::get_fileIDsToUnparse

(

)

const

void Sg_File_Info::set_fileIDsToUnparse

(

SgFileIdList

fileIDsToUnparse

)

---

Friends And Related Function Documentation

friend class AST_FILE_IO [friend]

Reimplemented from SgSupport.

friend class Sg_File_InfoStorageClass [friend]

friend class AstSpecificDataManagingClass [friend]

Reimplemented from SgSupport.

friend class AstSpecificDataManagingClassStorageClass [friend]

Reimplemented from SgSupport.

bool Sg_File_Info::operator==	(	const Sg_File_Info &	X,
		const Sg_File_Info &	Y
	)			[friend]

This relational operator tests two Sg_File_Info objects for equal position information.

Returns:

Returns bool.

bool Sg_File_Info::operator!=	(	const Sg_File_Info &	X,
		const Sg_File_Info &	Y
	)			[friend]

This relational operator tests two Sg_File_Info objects for unequal position information.

Returns:

Returns bool.

Sg_File_Info::operator>	(	const Sg_File_Info &	X,
		const Sg_File_Info &	Y
	)			[friend]

This relational operator tests two Sg_File_Info objects for X being after Y in the same file.

Returns:

Returns bool.

Sg_File_Info::operator<	(	const Sg_File_Info &	X,
		const Sg_File_Info &	Y
	)			[friend]

This relational operator tests two Sg_File_Info objects for X being before Y in the same file.

Returns:

Returns bool.

Sg_File_Info::operator>=	(	const Sg_File_Info &	X,
		const Sg_File_Info &	Y
	)			[friend]

This relational operator tests two Sg_File_Info objects for X being at the same position or after Y in the same file.

Returns:

Returns bool.

Sg_File_Info::operator<=	(	const Sg_File_Info &	X,
		const Sg_File_Info &	Y
	)			[friend]

This relational operator tests two Sg_File_Info objects for X being at the same position or before Y in the same file.

Returns:

Returns bool.

Sg_File_Info::isSg_File_Info

(

SgNode *

s

)

[friend]

Casts pointer from base class to derived class.

This functions returns a Sg_File_Info pointer for any input of a pointer to an object derived from a Sg_File_Info.

Returns:

Returns valid pointer to Sg_File_Info if input is derived from a SgLocatedNode.

Sg_File_Info::isSg_File_Info

(

const SgNode *

s

)

[friend]

Casts pointer from base class to derived class (for const pointers).

This functions returns a Sg_File_Info pointer for any input of a pointer to an object derived from a Sg_File_Info.

Returns:

Returns valid pointer to Sg_File_Info if input is derived from a SgLocatedNode.

Sg_File_Info* Sg_File_Info_getPointerFromGlobalIndex

(

unsigned long

globalIndex

)

[friend]

Constructor for use by AST File I/O MechanismTypedef used for low level memory access. Typedef used to hold memory addresses as values. Methods to find the pointer to a global and local index.

unsigned long Sg_File_Info_getNumberOfValidNodesAndSetGlobalIndexInFreepointer

(

unsigned

long

)

[friend]

Get the size of the memory pool.

It actually returns the size of the whole blocks allocated, no matter they contain valid pointers or not.

void Sg_File_Info_clearMemoryPool

(

)

[friend]

void Sg_File_Info_extendMemoryPoolForFileIO

(

unsigned

long

)

[friend]

void Sg_File_Info_getNextValidPointer

(

std::pair< Sg_File_Info *, std::vector< unsigned char * >::const_iterator > &

)

[friend]

void Sg_File_Info_resetValidFreepointers

(

)

[friend]

---

Member Data Documentation

Sg_File_Info::p_file_id [protected]

This is a key that maps integers to file names, it prevents redundent storage of filename strings.

This is part of a mechanism to reduce the memory requirements of the IR (to support whole program analysis in ROSE). The values are keys to an STL map which relates file ids to file name strings, allowing a more compressed representation of the filename data in the Sg_File_Info object. There are two maps, one for finding the filename string from a file id integer (p_fileidtoname_map), and another for the reverse map (p_nametofileid_map).

For internal use only.

We will in the future limit the range of this value (expect a signed short int: 16 bits, 32K = 32768 files plus negative values for special cases).

Sg_File_Info::p_line [protected]

This is the line number of the location of the source code for this IR node.

This information is useful in the heuristics of attaching comments to IR nodes (SgStatement and SgExpression IR nodes).

The value of this variable is always greater than or equal to zero. In the case of isCompilerGenerated() == true or isTransformation() == true then value is INT_MAX-1. This value if define for this case so that all comments will be attached before the associated statement.

For internal use only.

We will in the future limit the range of this value (expect a short int: 20 bits, 1000K = 1,048,576 lines per file).

Sg_File_Info::p_col [protected]

This is the column number of the location of the source code for this IR node.

This information is useful in the heuristics of attaching comments to IR nodes (SgStatement and SgExpression IR nodes).

The value of this variable is always greater than or equal to zero. If IR node is compiler generated for a transformation then value is set to INT_MAX-1.

For internal use only.

We will in the future limit the range of this value (expect a short int: 16 bits, 64K = 65536 charaters per line).

Sg_File_Info::p_classificationBitField [protected]

This is mechanism for classification of the IR node.

IR nodes use this mechanism to classify themselves as either part of a transformation or compiler generated (other enum values of Sg_File_Info::classifier are not used).

For internal use only.

We will in the future limit the range of this value (expect an unsigned char: 8 bits, 64K = 65536 charaters per line).

Sg_File_Info::p_fileIDsToUnparse [protected]

This set contains a list of all file ids for which the accompanying IR node should be unparsed.

This is part of the AST Merge mechanism. This set contains a list of file ids. During unparsing, if we encounter a node with this Sg_File_Info object, we only want to unparse this file if the file we are currently unparsing is in this list.

For internal use only.

NOTE: This set should be empty unless the node is marked as shared

std::map< int, std::string > Sg_File_Info::p_fileidtoname_map [static, protected]

This is a static STL map of file id (integers) to file names (strings).

std::map< std::string, int > Sg_File_Info::p_nametofileid_map [static, protected]

This is a static STL map of file names (strings) to file id (integers).

---

The documentation for this class was generated from the following files:

• Cxx_Grammar.h
• SgFileInfo.docs

---
