SgAsmNode Class Reference

#include <Cxx_Grammar.h>

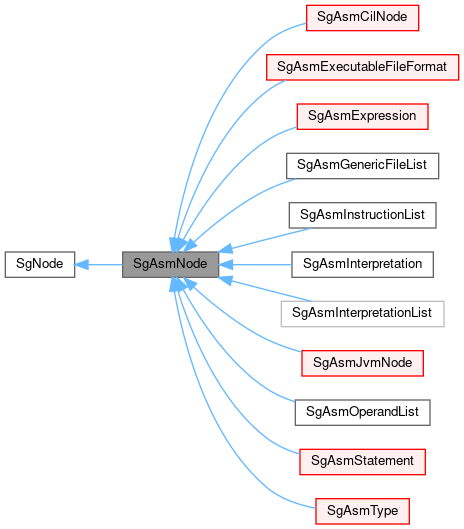

Inheritance diagram for SgAsmNode:

[legend]Collaboration diagram for SgAsmNode:

[legend]List of all members.

Public Types
typedef SgNode	base_node_type
	static_variant = V_SgAsmNode
enum	{ static_variant = V_SgAsmNode }
	static variant value More...
Public Member Functions
virtual SgNode *	copy (SgCopyHelp &help) const
	SgAsmNode (const SgAsmNode &X)
virtual void	addNewAttribute (std::string s, AstAttribute *a)
	Add a new attribute represented by the named string.
virtual AstAttribute *	getAttribute (std::string s) const
	Returns attribute of name 's'.
virtual void	updateAttribute (std::string s, AstAttribute *a)
	Replace existing attribute of name 's' with new AstAttribute.
virtual void	setAttribute (std::string s, AstAttribute *a)
	This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.
virtual void	removeAttribute (std::string s)
	Remove attribute of name 's' if present.
virtual bool	attributeExists (std::string s) const
	Tests if attribute of name 's' is present.
virtual int	numberOfAttributes () const
	Returns the number of attributes on this IR node.
virtual std::string	class_name () const
	Copies AST (whole subtree, depending on the SgCopyHelp class returns a string representing the class name.
virtual VariantT	variantT () const
	returns new style SageIII enum values
void *	operator new (size_t size)
	returns pointer to newly allocated IR node
void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)
void	operator delete (void *pointer)
virtual std::vector< SgNode * >	get_traversalSuccessorContainer ()
	FOR INTERNAL USE within ROSE traverals mechanism only.
virtual std::vector< std::string >	get_traversalSuccessorNamesContainer ()
	FOR INTERNAL USE within ROSE traverals mechanism only.
virtual size_t	get_numberOfTraversalSuccessors ()
virtual SgNode *	get_traversalSuccessorByIndex (size_t idx)
virtual size_t	get_childIndex (SgNode *child)
virtual RTIReturnType	roseRTI ()
	FOR INTERNAL USE Access to Runtime Type Information (RTI) for this IR nodes.
virtual const char *	sage_class_name () const ROSE_DEPRECATED_FUNCTION
void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
virtual void	accept (ROSE_VisitorPattern &visitor)
	DXN (08/09/2010): support for the classic visitor pattern done in GoF.
virtual bool	isInMemoryPool ()
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.
virtual void	checkDataMemberPointersIfInMemoryPool ()
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.
virtual std::vector< std::pair< SgNode *, std::string > >	returnDataMemberPointers () const
	FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools
virtual void	processDataMemberReferenceToPointers (ReferenceToPointerHandler *)
	FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools
virtual long	getChildIndex (SgNode *childNode) const
	FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.
	SgAsmNode (const SgAsmNodeStorageClass &source)
SgAsmNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.
AttachedPreprocessingInfoType *	get_attachedPreprocessingInfoPtr () const
void	set_attachedPreprocessingInfoPtr (AttachedPreprocessingInfoType *attachedPreprocessingInfoPtr)
AstAttributeMechanism *	get_asmAttributeMechanism () const
void	set_asmAttributeMechanism (AstAttributeMechanism *asmAttributeMechanism)
AstAttributeMechanism *	get_attributeMechanism () const
	FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error.
void	set_attributeMechanism (AstAttributeMechanism *attributeMechanism)
	FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism.
virtual	~SgAsmNode ()
	SgAsmNode ()
Static Public Member Functions
static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.
static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.
static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern.
static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.
Protected Attributes
AttachedPreprocessingInfoType *	p_attachedPreprocessingInfoPtr
AstAttributeMechanism *	p_asmAttributeMechanism
AstAttributeMechanism *	p_attributeMechanism
Friends
class	AST_FILE_IO
class	SgAsmNodeStorageClass
class	AstSpecificDataManagingClass
class	AstSpecificDataManagingClassStorageClass
SgAsmNode *	isSgAsmNode (SgNode *s)
	Casts pointer from base class to derived class.
const SgAsmNode *	isSgAsmNode (const SgNode *s)
	Casts pointer from base class to derived class (for const pointers).
SgAsmNode *	SgAsmNode_getPointerFromGlobalIndex (unsigned long globalIndex)
	Constructor for use by AST File I/O MechanismTypedef used for low level memory access. Typedef used to hold memory addresses as values. Methods to find the pointer to a global and local index.
unsigned long	SgAsmNode_getNumberOfValidNodesAndSetGlobalIndexInFreepointer (unsigned long)
	Get the size of the memory pool.
void	SgAsmNode_clearMemoryPool ()
void	SgAsmNode_extendMemoryPoolForFileIO (unsigned long)
void	SgAsmNode_getNextValidPointer (std::pair< SgAsmNode *, std::vector< unsigned char * >::const_iterator > &)
void	SgAsmNode_resetValidFreepointers ()

---

Member Typedef Documentation

typedef SgNode SgAsmNode::base_node_type

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

---

Member Enumeration Documentation

anonymous enum

static variant value

Enumerator:

static_variant

---

Constructor & Destructor Documentation

SgAsmNode::SgAsmNode

(

const SgAsmNode &

X

)

SgAsmNode::SgAsmNode

(

const SgAsmNodeStorageClass &

source

)

virtual SgAsmNode::~SgAsmNode

(

)

[virtual]

SgAsmNode::SgAsmNode

(

)

---

Member Function Documentation

virtual SgNode* SgAsmNode::copy

(

SgCopyHelp &

help

)

const [virtual]

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

virtual void SgAsmNode::addNewAttribute	(	std::string	s,
		AstAttribute *	a
	)			[virtual]

Add a new attribute represented by the named string.

Reimplemented from SgNode.

virtual AstAttribute* SgAsmNode::getAttribute

(

std::string

s

)

const [virtual]

Returns attribute of name 's'.

Reimplemented from SgNode.

virtual void SgAsmNode::updateAttribute	(	std::string	s,
		AstAttribute *	a
	)			[virtual]

Replace existing attribute of name 's' with new AstAttribute.

Reimplemented from SgNode.

virtual void SgAsmNode::setAttribute	(	std::string	s,
		AstAttribute *	a
	)			[virtual]

This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.

Reimplemented from SgNode.

virtual void SgAsmNode::removeAttribute

(

std::string

s

)

[virtual]

Remove attribute of name 's' if present.

Reimplemented from SgNode.

virtual bool SgAsmNode::attributeExists

(

std::string

s

)

const [virtual]

Tests if attribute of name 's' is present.

Reimplemented from SgNode.

virtual int SgAsmNode::numberOfAttributes

(

)

const [virtual]

Returns the number of attributes on this IR node.

Reimplemented from SgNode.

virtual std::string SgAsmNode::class_name

(

)

const [virtual]

Copies AST (whole subtree, depending on the SgCopyHelp class returns a string representing the class name.

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

virtual VariantT SgAsmNode::variantT

(

)

const [virtual]

returns new style SageIII enum values

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

void* SgAsmNode::operator new

(

size_t

size

)

returns pointer to newly allocated IR node

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

void SgAsmNode::operator delete	(	void *	pointer,
		size_t	size
	)

deallocated memory for IR node (returns memory to memory pool for reuse)

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

void SgAsmNode::operator delete

(

void *

pointer

)

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

static size_t SgAsmNode::numberOfNodes

(

)

[static]

Returns the total number of IR nodes of this type.

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

static size_t SgAsmNode::memoryUsage

(

)

[static]

Returns the size in bytes of the total memory allocated for all IR nodes of this type.

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

virtual std::vector<SgNode*> SgAsmNode::get_traversalSuccessorContainer

(

)

[virtual]

FOR INTERNAL USE within ROSE traverals mechanism only.

This function builds and returns a copy of ordered container holding pointers to children of this node in a traversal. It is associated with the definition of a tree that is travered by the AST traversal mechanism; a tree that is embeded in the AST (which is a more general graph). This function is used within the implementation of the AST traversal and has a semantics may change in subtle ways that makes it difficult to use in user code. It can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Warning:

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns:

Returns ordered STL Container of pointers to children nodes in AST.

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

virtual std::vector<std::string> SgAsmNode::get_traversalSuccessorNamesContainer

(

)

[virtual]

FOR INTERNAL USE within ROSE traverals mechanism only.

This function builds and returns a copy of ordered container holding strings used to name data members that are traversed in the IR node. It is associated with the definition of a tree that is travered by the AST traversal mechanism; a tree that is embeded in the AST (which is a more general graph). This function is used within the implementation of the AST traversal and has a semantics may change in subtle ways that makes it difficult to use in user code. It can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Warning:

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Each string is a name of a member variable holding a pointer to a child in the AST. The names are the same as used in the generated enums for accessing attributes in a traversal. The order is the same in which they are traversed and the same in which the access enums are defined. Therefore this method can be used to get the corresponding name (string) of an access enum which allows to produce more meaningful messages for attribute computations.

Returns:

Returns ordered STL container of names (strings) of access names to children nodes in AST.

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

virtual size_t SgAsmNode::get_numberOfTraversalSuccessors

(

)

[virtual]

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

virtual SgNode* SgAsmNode::get_traversalSuccessorByIndex

(

size_t

idx

)

[virtual]

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

virtual size_t SgAsmNode::get_childIndex

(

SgNode *

child

)

[virtual]

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

virtual RTIReturnType SgAsmNode::roseRTI

(

)

[virtual]

FOR INTERNAL USE Access to Runtime Type Information (RTI) for this IR nodes.

This function provides runtime type information for accessing the structure of the current node. It is useful for generating code which would dump out or rebuild IR nodes.

Returns:

Returns a RTIReturnType object (runtime type information).

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

virtual const char* SgAsmNode::sage_class_name

(

)

const [virtual]

returns a C style string (char*) representing the class name

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

void SgAsmNode::executeVisitorMemberFunction

(

ROSE_VisitorPattern &

visitor

)

FOR INTERNAL USE Support for visitor pattern.

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry, SgAsmElfEHFrameEntryFDList, SgAsmDwarfInformation, SgAsmDwarfMacro, SgAsmDwarfMacroList, SgAsmDwarfLine, SgAsmDwarfLineList, SgAsmDwarfCompilationUnitList, SgAsmDwarfConstruct, SgAsmDwarfArrayType, SgAsmDwarfClassType, SgAsmDwarfEntryPoint, SgAsmDwarfEnumerationType, SgAsmDwarfFormalParameter, SgAsmDwarfImportedDeclaration, SgAsmDwarfLabel, SgAsmDwarfLexicalBlock, SgAsmDwarfMember, SgAsmDwarfPointerType, SgAsmDwarfReferenceType, SgAsmDwarfCompilationUnit, SgAsmDwarfStringType, SgAsmDwarfStructureType, SgAsmDwarfSubroutineType, SgAsmDwarfTypedef, SgAsmDwarfUnionType, SgAsmDwarfUnspecifiedParameters, SgAsmDwarfVariant, SgAsmDwarfCommonBlock, SgAsmDwarfCommonInclusion, SgAsmDwarfInheritance, SgAsmDwarfInlinedSubroutine, SgAsmDwarfModule, SgAsmDwarfPtrToMemberType, SgAsmDwarfSetType, SgAsmDwarfSubrangeType, SgAsmDwarfWithStmt, SgAsmDwarfAccessDeclaration, SgAsmDwarfBaseType, SgAsmDwarfCatchBlock, SgAsmDwarfConstType, SgAsmDwarfConstant, SgAsmDwarfEnumerator, SgAsmDwarfFileType, SgAsmDwarfFriend, SgAsmDwarfNamelist, SgAsmDwarfNamelistItem, SgAsmDwarfPackedType, SgAsmDwarfSubprogram, SgAsmDwarfTemplateTypeParameter, SgAsmDwarfTemplateValueParameter, SgAsmDwarfThrownType, SgAsmDwarfTryBlock, SgAsmDwarfVariantPart, SgAsmDwarfVariable, SgAsmDwarfVolatileType, SgAsmDwarfDwarfProcedure, SgAsmDwarfRestrictType, SgAsmDwarfInterfaceType, SgAsmDwarfNamespace, SgAsmDwarfImportedModule, SgAsmDwarfUnspecifiedType, SgAsmDwarfPartialUnit, SgAsmDwarfImportedUnit, SgAsmDwarfMutableType, SgAsmDwarfCondition, SgAsmDwarfSharedType, SgAsmDwarfFormatLabel, SgAsmDwarfFunctionTemplate, SgAsmDwarfClassTemplate, SgAsmDwarfUpcSharedType, SgAsmDwarfUpcStrictType, SgAsmDwarfUpcRelaxedType, SgAsmDwarfUnknownConstruct, SgAsmDwarfConstructList, SgAsmInterpretationList, SgAsmGenericFileList, SgAsmTarget, and SgAsmTargetList.

virtual void SgAsmNode::accept

(

ROSE_VisitorPattern &

visitor

)

[virtual]

DXN (08/09/2010): support for the classic visitor pattern done in GoF.

Reimplemented from SgNode.

Reimplemented in SgAsmStatement, SgAsmFunction, SgAsmBlock, SgAsmInstruction, SgAsmx86Instruction, SgAsmArmInstruction, SgAsmPowerpcInstruction, SgAsmStaticData, SgAsmExpression, SgAsmValueExpression, SgAsmByteValueExpression, SgAsmWordValueExpression, SgAsmDoubleWordValueExpression, SgAsmQuadWordValueExpression, SgAsmSingleFloatValueExpression, SgAsmDoubleFloatValueExpression, SgAsmVectorValueExpression, SgAsmBinaryExpression, SgAsmBinaryAdd, SgAsmBinarySubtract, SgAsmBinaryMultiply, SgAsmBinaryDivide, SgAsmBinaryMod, SgAsmBinaryAddPreupdate, SgAsmBinarySubtractPreupdate, SgAsmBinaryAddPostupdate, SgAsmBinarySubtractPostupdate, SgAsmBinaryLsl, SgAsmBinaryLsr, SgAsmBinaryAsr, SgAsmBinaryRor, SgAsmUnaryExpression, SgAsmUnaryPlus, SgAsmUnaryMinus, SgAsmUnaryRrx, SgAsmUnaryArmSpecialRegisterList, SgAsmMemoryReferenceExpression, SgAsmRegisterReferenceExpression, SgAsmx86RegisterReferenceExpression, SgAsmArmRegisterReferenceExpression, SgAsmPowerpcRegisterReferenceExpression, SgAsmControlFlagsExpression, SgAsmCommonSubExpression, SgAsmExprListExp, SgAsmInterpretation, SgAsmOperandList, SgAsmType, SgAsmTypeByte, SgAsmTypeWord, SgAsmTypeDoubleWord, SgAsmTypeQuadWord, SgAsmTypeDoubleQuadWord, SgAsmType80bitFloat, SgAsmType128bitFloat, SgAsmTypeSingleFloat, SgAsmTypeDoubleFloat, SgAsmTypeVector, SgAsmExecutableFileFormat, SgAsmGenericDLL, SgAsmGenericFormat, SgAsmGenericDLLList, SgAsmElfEHFrameEntryFD, SgAsmGenericFile, SgAsmGenericSection, SgAsmGenericHeader, SgAsmPEFileHeader, SgAsmLEFileHeader, SgAsmNEFileHeader, SgAsmDOSFileHeader, SgAsmElfFileHeader, SgAsmElfSection, SgAsmElfSymbolSection, SgAsmElfRelocSection, SgAsmElfDynamicSection, SgAsmElfStringSection, SgAsmElfNoteSection, SgAsmElfEHFrameSection, SgAsmElfSymverSection, SgAsmElfSymverDefinedSection, SgAsmElfSymverNeededSection, SgAsmElfSectionTable, SgAsmElfSegmentTable, SgAsmPESection, SgAsmPEImportSection, SgAsmPEExportSection, SgAsmPEStringSection, SgAsmPESectionTable, SgAsmDOSExtendedHeader, SgAsmCoffSymbolTable, SgAsmNESection, SgAsmNESectionTable, SgAsmNENameTable, SgAsmNEModuleTable, SgAsmNEStringTable, SgAsmNEEntryTable, SgAsmNERelocTable, SgAsmLESection, SgAsmLESectionTable, SgAsmLENameTable, SgAsmLEPageTable, SgAsmLEEntryTable, SgAsmLERelocTable, SgAsmGenericSymbol, SgAsmCoffSymbol, SgAsmElfSymbol, SgAsmGenericStrtab, SgAsmElfStrtab, SgAsmCoffStrtab, SgAsmGenericSymbolList, SgAsmGenericSectionList, SgAsmGenericHeaderList, SgAsmGenericString, SgAsmBasicString, SgAsmStoredString, SgAsmElfSectionTableEntry, SgAsmElfSegmentTableEntry, SgAsmElfSymbolList, SgAsmPEImportILTEntry, SgAsmElfRelocEntry, SgAsmElfRelocEntryList, SgAsmPEExportEntry, SgAsmPEExportEntryList, SgAsmElfDynamicEntry, SgAsmElfDynamicEntryList, SgAsmElfSegmentTableEntryList, SgAsmStringStorage, SgAsmElfNoteEntry, SgAsmElfNoteEntryList, SgAsmElfSymverEntry, SgAsmElfSymverEntryList, SgAsmElfSymverDefinedEntry, SgAsmElfSymverDefinedEntryList, SgAsmElfSymverDefinedAux, SgAsmElfSymverDefinedAuxList, SgAsmElfSymverNeededEntry, SgAsmElfSymverNeededEntryList, SgAsmElfSymverNeededAux, SgAsmElfSymverNeededAuxList, SgAsmPEImportDirectory, SgAsmPEImportHNTEntry, SgAsmPESectionTableEntry, SgAsmPEExportDirectory, SgAsmPERVASizePair, SgAsmCoffSymbolList, SgAsmPERVASizePairList, SgAsmElfEHFrameEntryCI, SgAsmPEImportHNTEntryList, SgAsmPEImportILTEntryList, SgAsmPEImportLookupTable, SgAsmPEImportDirectoryList, SgAsmNEEntryPoint, SgAsmNERelocEntry, SgAsmNESectionTableEntry, SgAsmElfEHFrameEntryCIList, SgAsmLEPageTableEntry, SgAsmLEEntryPoint, SgAsmLESectionTableEntry,
