ROSE: SgBinaryOp Class Reference

typedef SgExpression SgBinaryOp::base_node_type

Reimplemented from SgExpression.

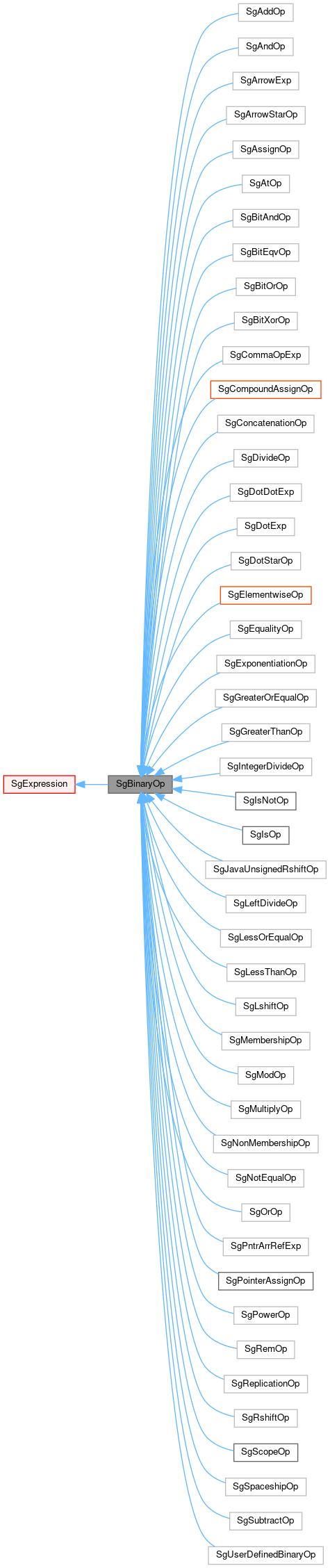

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

anonymous enum

static variant value

Enumerator:

static_variant

SgBinaryOp::SgBinaryOp ( const SgBinaryOpStorageClass & source )

SgBinaryOp::~SgBinaryOp ( ) [virtual]

This is the destructor.

Only the Sg_File_Info object can be deleted in this object.

SgBinaryOp::SgBinaryOp	(	Sg_File_Info *	startOfConstruct = `NULL`,
		SgExpression *	lhs_operand_i = `NULL`,
		SgExpression *	rhs_operand_i = `NULL`,
		SgType *	expression_type = `NULL`
	)

This is the constructor.

This constructor builds the SgBinaryOp base class.

Parameters:

	startOfConstruct	represents the position in the source code
	lhs_operand_i	represents the lhs operand to which the operator is applied
	rhs_operand_i	represents the rhs operand to which the operator is applied
	expression_type	represents the type of the return value of the operator

See also:: Example:create an SgBinaryOp object

SgBinaryOp::SgBinaryOp	(	SgExpression *	lhs_operand_i,
		SgExpression *	rhs_operand_i,
		SgType *	expression_type
	)

virtual SgNode* SgBinaryOp::copy ( SgCopyHelp & help ) const [virtual]

SgBinaryOp::length ( ) const

Returns number of operands (virtual function).

Returns number of operands (all binary operators return value = 1). This function is not used and is not a defined part a minumal interface for Sage III.

Deprecated:: This function is not used.

Returns:: Returns int

SgBinaryOp::empty ( ) const

Returns true if number of operands is zero, else false.

This function returns boolean value given by (length() == 0). This function is not used and is not a defined part a minumal interface for Sage III.

Deprecated:: This function is not used.

Returns:: Returns bool

SgExpression* SgBinaryOp::get_next ( int & n ) const

int SgBinaryOp::replace_expression	(	SgExpression *	,
		SgExpression *
	)			`[virtual]`

Replace an expression child of this node with another one.

It contains all the base functionality for the construction, manipulation, and unparsing support.

Reimplemented from SgExpression.

SgBinaryOp::get_lhs_operand ( ) const

returns SgExpression pointer to the lhs operand associated with this binary operator.

Returns:: Returns SgExpression pointer.

SgBinaryOp::set_lhs_operand ( SgExpression * operand )

This function allows the p_lhs_operand pointer to be set (used internally).

This function is mostly used internally and is only required to support editing of existing SgBinaryOp objects.

Parameters:

operand

- sets value of internal p_lhs_operand pointer.

Returns:: Returns void.

SgBinaryOp::get_rhs_operand ( ) const

returns SgExpression pointer to the rhs operand associated with this binary operator.

Returns:: Returns SgExpression pointer.

SgBinaryOp::set_rhs_operand ( SgExpression * operand )

This function allows the p_rhs_operand pointer to be set (used internally).

This function is mostly used internally and is only required to support editing of existing SgBinaryOp objects.

Parameters:

operand

- sets value of internal p_rhs_operand pointer.

Returns:: Returns void.

SgType* SgBinaryOp::get_type ( ) const [virtual]

get the type associated with this expression

This function is the correct user function to call to get the type (note that get_expression_type() is for internal use only).

Returns:: Returns pointer to SgType (base class for all possible types)

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAndOp, SgOrOp, SgCommaOpExp, SgPntrArrRefExp, SgUserDefinedBinaryOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual unsigned int SgBinaryOp::cfgIndexForEnd ( ) const [virtual]

Determine the CFG index for the end of this construct.

Reimplemented from SgExpression.

virtual std::vector<VirtualCFG::CFGEdge> SgBinaryOp::cfgOutEdges ( unsigned int index ) [virtual]

Find the out edges of a CFG node -- internal version.

Reimplemented from SgExpression.

Reimplemented in SgAndOp, and SgOrOp.

virtual std::vector<VirtualCFG::CFGEdge> SgBinaryOp::cfgInEdges ( unsigned int index ) [virtual]

Find the in edges of a CFG node -- internal version.

Reimplemented from SgExpression.

Reimplemented in SgAndOp, and SgOrOp.

virtual std::string SgBinaryOp::class_name ( ) const [virtual]

Copies AST (whole subtree, depending on the SgCopyHelp class returns a string representing the class name.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual VariantT SgBinaryOp::variantT ( ) const [virtual]

returns new style SageIII enum values

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

void* SgBinaryOp::operator new ( size_t size )

returns pointer to newly allocated IR node

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

void SgBinaryOp::operator delete	(	void *	pointer,
		size_t	size
	)

deallocated memory for IR node (returns memory to memory pool for reuse)

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

void SgBinaryOp::operator delete ( void * pointer )

static size_t SgBinaryOp::numberOfNodes ( ) [static]

Returns the total number of IR nodes of this type.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

static size_t SgBinaryOp::memoryUsage ( ) [static]

Returns the size in bytes of the total memory allocated for all IR nodes of this type.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual std::vector<SgNode*> SgBinaryOp::get_traversalSuccessorContainer ( ) [virtual]

FOR INTERNAL USE within ROSE traverals mechanism only.

This function builds and returns a copy of ordered container holding pointers to children of this node in a traversal. It is associated with the definition of a tree that is travered by the AST traversal mechanism; a tree that is embeded in the AST (which is a more general graph). This function is used within the implementation of the AST traversal and has a semantics may change in subtle ways that makes it difficult to use in user code. It can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Warning:: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns:: Returns ordered STL Container of pointers to children nodes in AST.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual std::vector<std::string> SgBinaryOp::get_traversalSuccessorNamesContainer ( ) [virtual]

FOR INTERNAL USE within ROSE traverals mechanism only.

This function builds and returns a copy of ordered container holding strings used to name data members that are traversed in the IR node. It is associated with the definition of a tree that is travered by the AST traversal mechanism; a tree that is embeded in the AST (which is a more general graph). This function is used within the implementation of the AST traversal and has a semantics may change in subtle ways that makes it difficult to use in user code. It can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Warning:: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Each string is a name of a member variable holding a pointer to a child in the AST. The names are the same as used in the generated enums for accessing attributes in a traversal. The order is the same in which they are traversed and the same in which the access enums are defined. Therefore this method can be used to get the corresponding name (string) of an access enum which allows to produce more meaningful messages for attribute computations.

Returns:: Returns ordered STL container of names (strings) of access names to children nodes in AST.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual size_t SgBinaryOp::get_numberOfTraversalSuccessors ( ) [virtual]

virtual SgNode* SgBinaryOp::get_traversalSuccessorByIndex ( size_t idx ) [virtual]

virtual size_t SgBinaryOp::get_childIndex ( SgNode * child ) [virtual]

virtual RTIReturnType SgBinaryOp::roseRTI ( ) [virtual]

FOR INTERNAL USE Access to Runtime Type Information (RTI) for this IR nodes.

This function provides runtime type information for accessing the structure of the current node. It is useful for generating code which would dump out or rebuild IR nodes.

Returns:: Returns a RTIReturnType object (runtime type information).

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual const char* SgBinaryOp::sage_class_name ( ) const [virtual]

returns a C style string (char*) representing the class name

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

void SgBinaryOp::executeVisitorMemberFunction ( ROSE_VisitorPattern & visitor )

FOR INTERNAL USE Support for visitor pattern.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual void SgBinaryOp::accept ( ROSE_VisitorPattern & visitor ) [virtual]

DXN (08/09/2010): support for the classic visitor pattern done in GoF.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

static void SgBinaryOp::traverseMemoryPoolNodes ( ROSE_VisitTraversal & visit ) [static]

FOR INTERNAL USE Support for visitor pattern.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

static void SgBinaryOp::traverseMemoryPoolVisitorPattern ( ROSE_VisitorPattern & visitor ) [static]

FOR INTERNAL USE Support for visitor pattern.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

static void SgBinaryOp::visitRepresentativeNode ( ROSE_VisitTraversal & visit ) [static]

FOR INTERNAL USE Support for type-based traversal.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual bool SgBinaryOp::isInMemoryPool ( ) [virtual]

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual void SgBinaryOp::checkDataMemberPointersIfInMemoryPool ( ) [virtual]

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual std::vector<std::pair<SgNode*,std::string> > SgBinaryOp::returnDataMemberPointers ( ) const [virtual]

FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

This functions is part of general support for many possible tools to operate on the AST. The forms a list of ALL IR node pointers used by each IR node, and is a supperset of the get_traversalSuccessorContainer(). It is (I think) less than the set of pointers used by the AST file I/O. This is part of work implemented by Andreas, and support tools such as the AST graph generation.

Warning:: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns:: STL vector of pairs of SgNode* and strings

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual void SgBinaryOp::processDataMemberReferenceToPointers ( ReferenceToPointerHandler * ) [virtual]

FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

This functions similar to returnDataMemberPointers() except that it passes references to a handler object. As a result there is FAR more damage that can be done by using this function, but it is type-safe. This is provided for support of internal tools that operate on the AST, e.g the AST Merge mechanism.

Warning:: This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

virtual long SgBinaryOp::getChildIndex ( SgNode * childNode ) const [virtual]

FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

This function returns a unique value for the input childNode in set of children at this IR node. Note that a negative value indicates that the input node is not a child. This is the basis for the implementation of the isChild(SgNode*) member function. Data members that are NULL in the IR node are counted internally (so that this function returns value that could be statically defined, and so are not dynamically determined).

Warning:: The mapping on children to integer values could change from release to release of ROSE.

Returns:: long

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

SgBinaryOp* SgBinaryOp::addRegExpAttribute	(	std::string	s,
		AstRegExAttribute *	a
	)

Support for AST matching using regular expression.

This support is incomplete and the subject of current research to define RegEx trees to support inexact matching.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

void SgBinaryOp::post_construction_initialization ( ) [virtual]

Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

Reimplemented from SgExpression.

Reimplemented in SgArrowExp, SgDotExp, SgDotStarOp, SgArrowStarOp, SgEqualityOp, SgLessThanOp, SgGreaterThanOp, SgNotEqualOp, SgLessOrEqualOp, SgGreaterOrEqualOp, SgAddOp, SgSubtractOp, SgMultiplyOp, SgDivideOp, SgIntegerDivideOp, SgModOp, SgAndOp, SgOrOp, SgBitXorOp, SgBitAndOp, SgBitOrOp, SgCommaOpExp, SgLshiftOp, SgRshiftOp, SgPntrArrRefExp, SgScopeOp, SgAssignOp, SgExponentiationOp, SgJavaUnsignedRshiftOp, SgConcatenationOp, SgPointerAssignOp, SgUserDefinedBinaryOp, SgCompoundAssignOp, SgPlusAssignOp, SgMinusAssignOp, SgAndAssignOp, SgIorAssignOp, SgMultAssignOp, SgDivAssignOp, SgModAssignOp, SgXorAssignOp, SgLshiftAssignOp, SgRshiftAssignOp, SgJavaUnsignedRshiftAssignOp, SgIntegerDivideAssignOp, SgExponentiationAssignOp, SgMembershipOp, SgNonMembershipOp, SgIsOp, and SgIsNotOp.

SgBinaryOp::get_lhs_operand_i ( ) const

returns SgExpression pointer to the operand associated with this binary operator.

Deprecated:: This function is not used.

Returns:: Returns SgExpression pointer.

SgBinaryOp::set_lhs_operand_i ( SgExpression * operand )

This function allows the p_lhs_operand_i pointer to be set (used internally).

This function is mostly used internally and is only required to support editing of existing SgBinaryOp objects.

Deprecated:: This function is not used.

Parameters:

operand

- sets value of internal p_lhs_operand pointer.

Returns:: Returns void.

SgBinaryOp::get_rhs_operand_i ( ) const

returns SgExpression pointer to the operand associated with this binary operator.

Deprecated:: This function is not used.

Returns:: Returns SgExpression pointer.

SgBinaryOp::set_rhs_operand_i ( SgExpression * operand )

This function allows the p_rhs_operand_i pointer to be set (used internally).

This function is mostly used internally and is only required to support editing of existing SgBinaryOp objects.

Deprecated:: This function is not used.

Parameters:

operand

- sets value of internal p_rhs_operand pointer.

Returns:: Returns void.

SgExpression* SgBinaryOp::get_originalExpressionTree ( ) const [virtual]

Reimplemented from SgExpression.

void SgBinaryOp::set_originalExpressionTree ( SgExpression * originalExpressionTree ) [virtual]

Reimplemented from SgExpression.

friend class AST_FILE_IO [friend]

friend class SgBinaryOpStorageClass [friend]

friend class AstSpecificDataManagingClass [friend]

friend class AstSpecificDataManagingClassStorageClass [friend]

SgBinaryOp::isSgBinaryOp ( SgNode * s ) [friend]

Casts pointer from base class to derived class.

This functions returns a SgBinaryOp pointer for any input of a pointer to an object derived from a SgBinaryOp.

Returns:: Returns valid pointer to SgBinaryOp if input is derived from a SgBinaryOp.

SgBinaryOp::isSgBinaryOp ( const SgNode * s ) [friend]

Casts pointer from base class to derived class (for const pointers).

This functions returns a SgBinaryOp pointer for any input of a pointer to an object derived from a SgBinaryOp.

Returns:: Returns valid pointer to SgBinaryOp if input is derived from a SgBinaryOp.

SgBinaryOp* SgBinaryOp_getPointerFromGlobalIndex ( unsigned long globalIndex ) [friend]

Constructor for use by AST File I/O MechanismTypedef used for low level memory access. Typedef used to hold memory addresses as values. Methods to find the pointer to a global and local index.

unsigned long SgBinaryOp_getNumberOfValidNodesAndSetGlobalIndexInFreepointer ( unsigned long ) [friend]

Get the size of the memory pool.

It actually returns the size of the whole blocks allocated, no matter they contain valid pointers or not.

void SgBinaryOp_clearMemoryPool ( ) [friend]

void SgBinaryOp_extendMemoryPoolForFileIO ( unsigned long ) [friend]

void SgBinaryOp_getNextValidPointer ( std::pair< SgBinaryOp *, std::vector< unsigned char * >::const_iterator > & ) [friend]

void SgBinaryOp_resetValidFreepointers ( ) [friend]

SgExpression * SgBinaryOp::p_lhs_operand_i [protected]

This is the operand associated with the lhs of the binary operator.

Every binary operator is applied to two operands, this variable stores the lhs operand to which the binary operator is applied (with the rhs).

SgExpression * SgBinaryOp::p_rhs_operand_i [protected]

This is the operand associated with the rhs of the binary operator.

Every binary operator is applied to two operands, this variable stores the rhs operand to which the binary operator is applied (with the lhs).

SgBinaryOp::p_expression_type [protected]

This SgType is the type of the operator (function type).

This value is the return type of the operator, different from a SgFunctionRefExp, but similar to a SgFunctionCall. Note that overloaded operators appear in Sage III as functions with a specific name (e.g. operator+, operator-, operator*, etc.). They are not Binary operator, they are SgFunctionRefExp objects. Other mechanisms within ROSE provide support for the classification of overloader operators OverloaderOperatorSupport.

SgExpression* SgBinaryOp::p_originalExpressionTree [protected]

SgBinaryOp Class Reference

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Friends

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation


Public Types
typedef SgExpression	base_node_type
	static_variant = V_SgBinaryOp
enum	{ static_variant = V_SgBinaryOp }
	static variant value More...
Public Member Functions
virtual SgNode *	copy (SgCopyHelp &help) const
int	length () const ROSE_DEPRECATED_FUNCTION
	Returns number of operands (virtual function).
bool	empty () const ROSE_DEPRECATED_FUNCTION
	Returns true if number of operands is zero, else false.
SgExpression *	get_next (int &n) const ROSE_DEPRECATED_FUNCTION
int	replace_expression (SgExpression , SgExpression ) ROSE_DEPRECATED_FUNCTION
	Replace an expression child of this node with another one.
SgExpression *	get_lhs_operand () const
	returns SgExpression pointer to the lhs operand associated with this binary operator.
void	set_lhs_operand (SgExpression *exp)
	This function allows the p_lhs_operand pointer to be set (used internally).
SgExpression *	get_rhs_operand () const
	returns SgExpression pointer to the rhs operand associated with this binary operator.
void	set_rhs_operand (SgExpression *exp)
	This function allows the p_rhs_operand pointer to be set (used internally).
SgType *	get_type () const
	get the type associated with this expression
virtual unsigned int	cfgIndexForEnd () const
	Determine the CFG index for the end of this construct.
virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index)
	Find the out edges of a CFG node -- internal version.
virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index)
	Find the in edges of a CFG node -- internal version.
virtual std::string	class_name () const
	Copies AST (whole subtree, depending on the SgCopyHelp class returns a string representing the class name.
virtual VariantT	variantT () const
	returns new style SageIII enum values
void *	operator new (size_t size)
	returns pointer to newly allocated IR node
void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)
void	operator delete (void *pointer)
virtual std::vector< SgNode * >	get_traversalSuccessorContainer ()
	FOR INTERNAL USE within ROSE traverals mechanism only.
virtual std::vector< std::string >	get_traversalSuccessorNamesContainer ()
	FOR INTERNAL USE within ROSE traverals mechanism only.
virtual size_t	get_numberOfTraversalSuccessors ()
virtual SgNode *	get_traversalSuccessorByIndex (size_t idx)
virtual size_t	get_childIndex (SgNode *child)
virtual RTIReturnType	roseRTI ()
	FOR INTERNAL USE Access to Runtime Type Information (RTI) for this IR nodes.
virtual const char *	sage_class_name () const ROSE_DEPRECATED_FUNCTION
void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
virtual void	accept (ROSE_VisitorPattern &visitor)
	DXN (08/09/2010): support for the classic visitor pattern done in GoF.
virtual bool	isInMemoryPool ()
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.
virtual void	checkDataMemberPointersIfInMemoryPool ()
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.
virtual std::vector< std::pair< SgNode *, std::string > >	returnDataMemberPointers () const
	FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools
virtual void	processDataMemberReferenceToPointers (ReferenceToPointerHandler *)
	FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools
virtual long	getChildIndex (SgNode *childNode) const
	FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.
	SgBinaryOp (const SgBinaryOpStorageClass &source)
SgBinaryOp *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.
void	post_construction_initialization ()
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.
SgExpression *	get_lhs_operand_i () const
	returns SgExpression pointer to the operand associated with this binary operator.
void	set_lhs_operand_i (SgExpression *lhs_operand_i)
	This function allows the p_lhs_operand_i pointer to be set (used internally).
SgExpression *	get_rhs_operand_i () const
	returns SgExpression pointer to the operand associated with this binary operator.
void	set_rhs_operand_i (SgExpression *rhs_operand_i)
	This function allows the p_rhs_operand_i pointer to be set (used internally).
SgExpression *	get_originalExpressionTree () const
void	set_originalExpressionTree (SgExpression *originalExpressionTree)
virtual	~SgBinaryOp ()
	This is the destructor.
	SgBinaryOp (Sg_File_Info startOfConstruct, SgExpression lhs_operand_i=NULL, SgExpression rhs_operand_i=NULL, SgType expression_type=NULL)
	This is the constructor.
	SgBinaryOp (SgExpression lhs_operand_i, SgExpression rhs_operand_i, SgType *expression_type)
Static Public Member Functions
static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.
static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.
static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern.
static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.
Protected Attributes
SgExpression *	p_lhs_operand_i
	This is the operand associated with the lhs of the binary operator.
SgExpression *	p_rhs_operand_i
	This is the operand associated with the rhs of the binary operator.
SgType *	p_expression_type
	This SgType is the type of the operator (function type).
SgExpression *	p_originalExpressionTree
Friends
class	AST_FILE_IO
class	SgBinaryOpStorageClass
class	AstSpecificDataManagingClass
class	AstSpecificDataManagingClassStorageClass
SgBinaryOp *	isSgBinaryOp (SgNode *s)
	Casts pointer from base class to derived class.
const SgBinaryOp *	isSgBinaryOp (const SgNode *s)
	Casts pointer from base class to derived class (for const pointers).
SgBinaryOp *	SgBinaryOp_getPointerFromGlobalIndex (unsigned long globalIndex)
	Constructor for use by AST File I/O MechanismTypedef used for low level memory access. Typedef used to hold memory addresses as values. Methods to find the pointer to a global and local index.
unsigned long	SgBinaryOp_getNumberOfValidNodesAndSetGlobalIndexInFreepointer (unsigned long)
	Get the size of the memory pool.
void	SgBinaryOp_clearMemoryPool ()
void	SgBinaryOp_extendMemoryPoolForFileIO (unsigned long)
void	SgBinaryOp_getNextValidPointer (std::pair< SgBinaryOp , std::vector< unsigned char >::const_iterator > &)
void	SgBinaryOp_resetValidFreepointers ()
