SgDeclarationStatement Class Reference

#include <Cxx_Grammar.h>

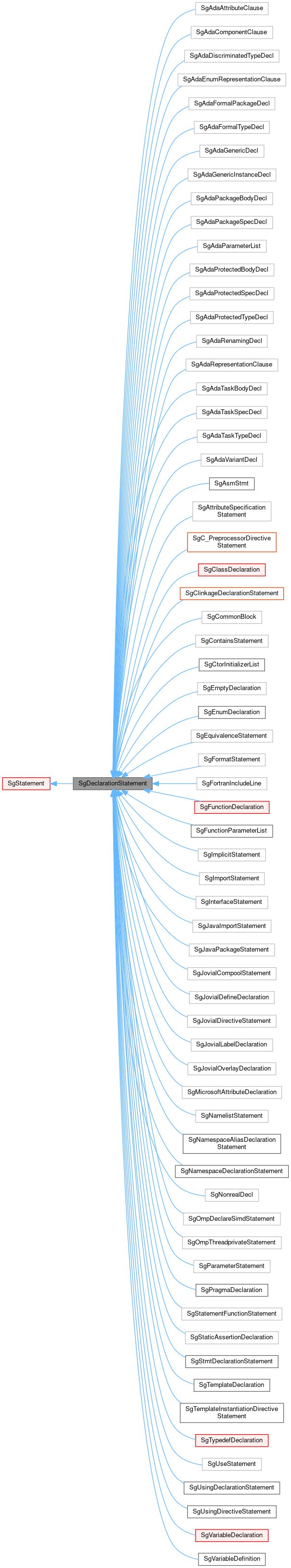

Inheritance diagram for SgDeclarationStatement:

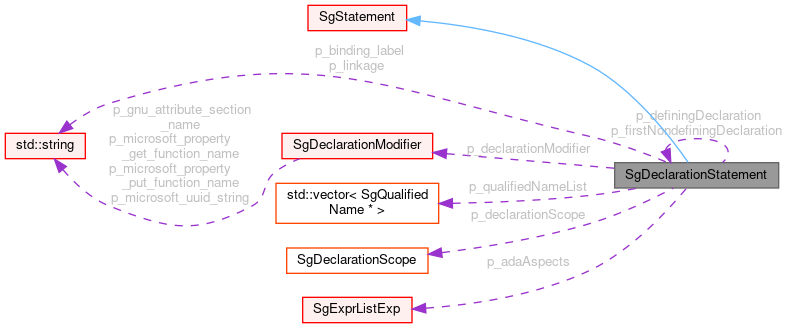

[legend]Collaboration diagram for SgDeclarationStatement:

[legend]List of all members.

---

Detailed Description

This class represents the concept of a declaration statement.

Declaration statements are where variables and types are defined and become available for use within a program. Declarations are strored in symbols (SgSymbol) and used to associate the symbol with a location within a scope within the application source code. There are many different types of declarations, within Sage III the SgDeclaration forms a base class for numerous IR nodes such as: class declarations (including structs and unions), enum declarations, function declarations, namespace declarations, pragma declarations, template declarations, typedef declarations, using declarations, using directives, variable declarations, etc.

An important concept for a few types fo declarations is that of defining vs. non-defining. Defining declarations are associated with definitions, for example a class definition or function definition. A class declaration where a class is defined (instead of a forward declaration) is a defining declaration. A forward declaration is a non-defining declaration. Some declarations are not explicitly forward declarations, they are non-defining declarations. Only declarations where there is a definition are defining declarations. Because definitions can at most appear once within a translation unit (a source file and it included header files), there is at most one defining declaration. The defining declaration is never shared, however the non-defining declaration can be shared and is required to be shared if there is more than one location in the AST where a non-defining declaration is required. There is at most one defining and one non-defining declaration (at some point they will also share their name, but this is not implemented yet). If a variable is defined to be extern or only defined through a refererence or pointer, then there would be no defining declaration (only a non-defining declaration).

The following code contains no defining declaration for the type "foobar":
typedef struct foobar *((FunctionPointer)(void);
foobar* foobar_pointer = NULL;
and yet is valid code (even though there is no explicit forward declaration of "foobar" as a class (or struct). In this case foobar is represented using a non-defining declaration internally and that declaration is reference multiple types (once within each statement). Note that the code above is valid C++, and not valid C code (to make it valid C code we would have to add "struct" the pointer declaration, for example: struct foobar* foobar_pointer = NULL;
So C++ is not always a super set of C :-).

Different types of declarations explained:
C and C++ declarations can come in several forms, for example:
typedef struct { int A; } A; // unnamed class declaration (which gets a name from the typedef)
struct A { int i; }; // autonomous declaration
struct B { int i; } b; // non autonomous declaration
In these cases "struct" and "class" can be used interchangablily. Internally "struct" and "class" are he same (but with a different enum to classify them, see SgNameType and SgClassType). Clearly most C++ code uses autonomous declarations.

There are no uses of this IR node anywhere. All statements are derived from this SgDeclarationStatement class.

For internal use only.

This is a base class for all statements.

Todo:

Current issues to look at:

• Current classes derived from SgDeclarationStatement and the SgInitializedName class have ways of generating names, qualified names, and mangled names, but we lack a uniform mechanism to generate mangled qualified names. The implementation is not uniform within the IR and this is a problem for applications which must generate unique names for C++ constructs. Specific to functions names:
  • We have:
    1. get_name()
    2. get_qualified_name()
    3. get_mangled_name()
  • While we need (on ALL SgDeclarationStatement IR nodes):
    1. get_name()
    2. get_qualified_name()
    3. get_mangled_name()
    4. get_qualified_mangled_name()

• It has been suggested that we eliminate get_qualified_mangled_name() and have get_mangled_name() return a mangled qualified name. Thus the semantics of get_mangled_name() would be changed to generate a mangled qualified name. The purpose of get_mangled_name is to generate a unique name for all declarations. Note that some declarations should not return a unique name:
  1. SgAsmStmt
  2. SgCtorInitializerList
  3. SgFunctionParameterList
  4. SgUsingDeclarationStatement
  5. SgVariableDefinition \ It may be that this should be the same as for the SgVariableDeclaration.

• Related to the above problem we wish to provide a definition under which all declarations (SgDeclarationStatement IR nodes) can be defined to be unique. Under One-time Definition Rule (ODR) definitions must be the same within a linked application (in each compilation unit). We define a unique name for a declaration IR node as:
  • Any declaration which matches another declaration under ODR must generate the same unique string.
  • Any two declarations that are different must generate different unique strings.
  • Important cases are:
    • The IR nodes for which there is an obvious mangled name (and a get_mangled_name() exists) are:
      • SgClassDeclaration
      • SgFunctionDeclaration
      • SgEnumDeclaration
      • SgNamespaceDeclarationStatement
      • SgTypedefDeclaration
    • IR nodes for which it is less obvious (or for which there is no present get_mangled_name() member function) are:
      • SgAsmStmt
      • SgCtorInitializerList
      • SgFunctionParameterList
      • SgNamespaceAliasDeclarationStatement
      • SgPragmaDeclaration
      • SgTemplateDeclaration (can this have a mangled name?)
      • SgTemplateInstantiationDirectiveStatement
      • SgUsingDeclarationStatement
      • SgUsingDirectiveStatement
      • SgVariableDeclaration
      • SgVariableDefinition
    • Other IR nodes (not derived from SgDeclarationStatement) but for which we need to generate mangled names (and a get_mangled_name() member functions exists) are:
      • SgTemplateArgument
      • SgFunctionDefinition
      • SgNamespaceDefinitionStatement
      • SgClassDefinition
      • SgType (and all IR nodes derived from SgType)
    • Other IR nodes (not derived from SgDeclarationStatement) but for which I think we need to generate mangled names (and a get_mangled_name() member functions does NOT exist) are:
      • SgInitializedName
      • SgFile (this might not really be required, but it might make sense)
      • SgDirectory (this might not really be required, but it might make sense)
      • SgBaseClass (this is questionable)
      • SgQualifiedName (this is questionable)

• Class declarations often point to their definition independently of if they are defining or non-defining declaration (true at least for SgTemplateInstantiationDecl objects). This is different from how function declarations are handled, where only the defining declaration has a valid pointer to the function definition. This should be made more consistant. There are more comments about this is the documentation for SgTemplateInstantiationDecl.

• The specification of "extern" is not the same as extern "C", one is handled in the SgDeclarationStatement (extern "C") and the other is handled in the SgStorageModifier (extern). It is confusing that the two are so far a part. Perhaps they could be together so that setting "C" linkage could declare a SgDeclarationStatement as "extern" at the same time. It makes no sense to have something marked as "C" linkage and have it not be extern (I think); so this could be considered an error (I think).

• To support debugging of applications using the mangled names to build unique strings we should provide a global map between the unique names and the associated declarations. This would avoid the creation of alternative name mangling mechanisms whose sole purpose it to fold into the mangled name debugging information.

Test:

To test the mangled name generation we should construct a program using the mangled names and compile it to verify uniquenss of the veriable names. Since functions of the same name can be repeated, mangled names from functions should generate functions in the test program and mangled names of veriables should generate variables, etc.

See also:

Example of using a SgDeclarationStatement object

Public Types
typedef SgStatement	base_node_type
	e_unknown = 0
	e_no_specialization = 1
	e_partial_specialization = 2
	e_specialization = 3
	e_template_specialization_last = 4
	e_gnu_attribute_visability_unknown = 0
	e_gnu_attribute_visability_unspecified = 1
	e_gnu_attribute_visability_hidden = 2
	e_gnu_attribute_visability_protected = 3
	e_gnu_attribute_visability_internal = 4
	e_last_gnu_visability_attribute
	static_variant = V_SgDeclarationStatement
enum	template_specialization_enum {   e_unknown = 0,   e_no_specialization = 1,   e_partial_specialization = 2,   e_specialization = 3,   e_template_specialization_last = 4 }
	Template Specialization Support. More...
enum	gnu_extension_visability_attribute_enum {   e_gnu_attribute_visability_unknown = 0,   e_gnu_attribute_visability_unspecified = 1,   e_gnu_attribute_visability_hidden = 2,   e_gnu_attribute_visability_protected = 3,   e_gnu_attribute_visability_internal = 4,   e_last_gnu_visability_attribute }
	GNU extension for visibility modifier (only one value can be specified). More...
enum	{ static_variant = V_SgDeclarationStatement }
	static variant value More...
Public Member Functions
virtual SgNode *	copy (SgCopyHelp &help) const
bool	isForward () const
	Returns boolean value indicating if this is a forward declaration.
void	setForward ()
	Marks a declaration as a forward declaration.
void	unsetForward ()
	Marks a forward declaration as a non-forward declaration.
bool	isNameOnly () const
void	setNameOnly ()
void	unsetNameOnly ()
bool	isExternBrace () const
void	setExternBrace ()
void	unsetExternBrace ()
bool	skipElaborateType () const
void	setSkipElaborateType ()
void	unsetSkipElaborateType ()
virtual SgName	get_mangled_name (void) const
virtual void	fixupCopy (SgNode *copy, SgCopyHelp &help) const
SgQualifiedNamePtrList &	get_qualifiedNameList ()
const SgQualifiedNamePtrList &	get_qualifiedNameList () const
void	set_qualifiedNameList (const SgQualifiedNamePtrList &x)
virtual SgSymbol *	get_symbol_from_symbol_table () const
	FOR INTERNAL USE Get the associated symbol from the symbol table in the stored scope. Users should use the SgDeclarationStatement::search_for_symbol_from_symbol_table() instead.
SgDeclarationStatement *	get_declaration_associated_with_symbol () const
SgSymbol *	search_for_symbol_from_symbol_table () const
	User interface for retrieving the associated symbol from the declaration.
bool	hasAssociatedSymbol () const
	Returns boolean value true of this type of declaration has an associated sysmbol.
SgName	get_qualified_name_prefix () const
	This function generates the qualified name prefix to be used with the named declaration (only applied to restricted set of declarations where name qualification can be used).
virtual std::string	class_name () const
	Copies AST (whole subtree, depending on the SgCopyHelp class returns a string representing the class name.
virtual VariantT	variantT () const
	returns new style SageIII enum values
void *	operator new (size_t size)
	returns pointer to newly allocated IR node
void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)
void	operator delete (void *pointer)
virtual std::vector< SgNode * >	get_traversalSuccessorContainer ()
	FOR INTERNAL USE within ROSE traverals mechanism only.
virtual std::vector< std::string >	get_traversalSuccessorNamesContainer ()
	FOR INTERNAL USE within ROSE traverals mechanism only.
virtual size_t	get_numberOfTraversalSuccessors ()
virtual SgNode *	get_traversalSuccessorByIndex (size_t idx)
virtual size_t	get_childIndex (SgNode *child)
virtual RTIReturnType	roseRTI ()
	FOR INTERNAL USE Access to Runtime Type Information (RTI) for this IR nodes.
virtual const char *	sage_class_name () const ROSE_DEPRECATED_FUNCTION
void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
virtual void	accept (ROSE_VisitorPattern &visitor)
	DXN (08/09/2010): support for the classic visitor pattern done in GoF.
virtual bool	isInMemoryPool ()
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.
virtual void	checkDataMemberPointersIfInMemoryPool ()
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.
virtual std::vector< std::pair< SgNode *, std::string > >	returnDataMemberPointers () const
	FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools
virtual void	processDataMemberReferenceToPointers (ReferenceToPointerHandler *)
	FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools
virtual long	getChildIndex (SgNode *childNode) const
	FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.
	SgDeclarationStatement (const SgDeclarationStatementStorageClass &source)
SgDeclarationStatement *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression.
void	post_construction_initialization ()
	Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.
unsigned int	get_decl_attributes () const
void	set_decl_attributes (unsigned int decl_attributes)
std::string	get_linkage () const
void	set_linkage (std::string linkage)
const SgDeclarationModifier &	get_declarationModifier () const
SgDeclarationModifier &	get_declarationModifier ()
	Returns SgDeclarationModifier object by reference (so that it can be set).
bool	get_nameOnly () const
void	set_nameOnly (bool nameOnly)
bool	get_forward () const
void	set_forward (bool forward)
bool	get_externBrace () const
void	set_externBrace (bool externBrace)
bool	get_skipElaborateType () const
void	set_skipElaborateType (bool skipElaborateType)
SgDeclarationStatement *	get_definingDeclaration () const
	This is an access function for the SgDeclarationStatement::p_definingDeclaration data member (see that variable's documentation for details).
void	set_definingDeclaration (SgDeclarationStatement *definingDeclaration)
	This is an access function for the SgDeclarationStatement::p_definingDeclaration data member (see that variable's documentation for details).
SgDeclarationStatement *	get_firstNondefiningDeclaration () const
	This is an access function for the SgDeclarationStatement::p_firstNondefiningDeclaration data member (see that variable's documentation for details).
void	set_firstNondefiningDeclaration (SgDeclarationStatement *firstNondefiningDeclaration)
	This is an access function for the SgDeclarationStatement::p_firstNondefiningDeclaration data member (see that variable's documentation for details).
std::string	get_binding_label () const
void	set_binding_label (std::string binding_label)
virtual	~SgDeclarationStatement ()
	This is the destructor.
	SgDeclarationStatement (Sg_File_Info *startOfConstruct)
	This is the constructor.
	SgDeclarationStatement ()
Static Public Member Functions
static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.
static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.
static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern.
static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.
Protected Member Functions
void	resetTemplateNameSupport (bool &nameResetFromMangledForm, SgName &name)
void	testForBadGenerateTemplateName (const std::string &name)
bool	skipEmptyTemplateArgumentListTest (SgFunctionDeclaration *functionDeclaration)
SgName	fixupTemplateNameForMangledNameSupport (const SgName &s) const
SgName	generate_alternative_name_for_unnamed_declaration (SgNode *parent) const
SgName	generate_alternative_name_for_unnamed_declaration_in_scope (SgScopeStatement *scope) const
Protected Attributes
unsigned int	p_decl_attributes
	This is old and used to be used to hold modifiers.
std::string	p_linkage
	This string stores the value "C", "C++", or "fortran" to define the external linkage for generating linkable names.
SgDeclarationModifier	p_declarationModifier
	This is the mechanism to handle declaration modifiers.
bool	p_nameOnly
	I think this is somewhat redundant with the purpose of specifying a forward declaration. Either that or it is information used by the unparser (Oh, I hope not!).
bool	p_forward
	This marks a declaration as being an explicit forward declaration.
bool	p_externBrace
	This marks that the declaration appeared with "extern".
bool	p_skipElaborateType
	This marks "type elaboration" which is the use of the keyword "class" before variables of type class.
SgDeclarationStatement *	p_definingDeclaration
	This pointer is valid only if a defining declaration exists, and stores the defining declaration where the declaration was defined.
SgDeclarationStatement *	p_firstNondefiningDeclaration
	This pointer is valid if there is a non-defining declaration, and stores the first non-defining declaration where a declaration was made explicitly (as in forward declaration) or implicitly as in the case of a few IR nodes (e.g. SgClassDeclaration). See description of SgDeclarationStatement.
SgQualifiedNamePtrList	p_qualifiedNameList
std::string	p_binding_label
Friends
class	AST_FILE_IO
class	SgDeclarationStatementStorageClass
class	AstSpecificDataManagingClass
class	AstSpecificDataManagingClassStorageClass
SgDeclarationStatement *	isSgDeclarationStatement (SgNode *s)
	Casts pointer from base class to derived class.
const SgDeclarationStatement *	isSgDeclarationStatement (const SgNode *s)
	Casts pointer from base class to derived class (for const pointers).
SgDeclarationStatement *	SgDeclarationStatement_getPointerFromGlobalIndex (unsigned long globalIndex)
	Constructor for use by AST File I/O MechanismTypedef used for low level memory access. Typedef used to hold memory addresses as values. Methods to find the pointer to a global and local index.
unsigned long	SgDeclarationStatement_getNumberOfValidNodesAndSetGlobalIndexInFreepointer (unsigned long)
	Get the size of the memory pool.
void	SgDeclarationStatement_clearMemoryPool ()
void	SgDeclarationStatement_extendMemoryPoolForFileIO (unsigned long)
void	SgDeclarationStatement_getNextValidPointer (std::pair< SgDeclarationStatement *, std::vector< unsigned char * >::const_iterator > &)
void	SgDeclarationStatement_resetValidFreepointers ()

---

Member Typedef Documentation

typedef SgStatement SgDeclarationStatement::base_node_type

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

---

Member Enumeration Documentation

enum SgDeclarationStatement::template_specialization_enum

Template Specialization Support.

different forms of template specialization for - classes, functions, and variable declarations

Enumerator:

e_unknown	unknown value (error value)
e_no_specialization	not a specialization (default value)
e_partial_specialization	partial specialization
e_specialization	specialization
e_template_specialization_last	last value (unused)

enum SgDeclarationStatement::gnu_extension_visability_attribute_enum

GNU extension for visibility modifier (only one value can be specified).

Visibility modifier information about (unspecified, hidden, protected, internal).

For internal use only.

Only one value can be specified.

Enumerator:

e_gnu_attribute_visability_unknown	Unknown value (error)
e_gnu_attribute_visability_unspecified	Default value
e_gnu_attribute_visability_hidden	hidden visibility attribute
e_gnu_attribute_visability_protected	protected visibility attribute
e_gnu_attribute_visability_internal	internal visibility attribute
e_last_gnu_visability_attribute	last visibility attribute value (upper bound on range of values, used in error checking)

anonymous enum

static variant value

Enumerator:

static_variant

---

Constructor & Destructor Documentation

SgDeclarationStatement::SgDeclarationStatement

(

const SgDeclarationStatementStorageClass &

source

)

SgDeclarationStatement::~SgDeclarationStatement

(

)

[virtual]

This is the destructor.

There are a lot of things to delete, but nothing is deleted in this destructor.

SgDeclarationStatement::SgDeclarationStatement

(

Sg_File_Info *

startOfConstruct = NULL

)

This is the constructor.

This constructor builds the SgDeclarationStatement base class.

Parameters:

startOfConstruct

represents the position in the source code

SgDeclarationStatement::SgDeclarationStatement

(

)

---

Member Function Documentation

virtual SgNode* SgDeclarationStatement::copy

(

SgCopyHelp &

help

)

const [virtual]

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

SgDeclarationStatement::isForward

(

)

const

Returns boolean value indicating if this is a forward declaration.

Returns:

Returns bool.

SgDeclarationStatement::setForward

(

)

Marks a declaration as a forward declaration.

Returns:

Returns void.

SgDeclarationStatement::unsetForward

(

)

Marks a forward declaration as a non-forward declaration.

Returns:

Returns void.

bool SgDeclarationStatement::isNameOnly

(

)

const

void SgDeclarationStatement::setNameOnly

(

)

void SgDeclarationStatement::unsetNameOnly

(

)

bool SgDeclarationStatement::isExternBrace

(

)

const

void SgDeclarationStatement::setExternBrace

(

)

void SgDeclarationStatement::unsetExternBrace

(

)

bool SgDeclarationStatement::skipElaborateType

(

)

const

void SgDeclarationStatement::setSkipElaborateType

(

)

void SgDeclarationStatement::unsetSkipElaborateType

(

)

virtual SgName SgDeclarationStatement::get_mangled_name

(

void

)

const [virtual]

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

void SgDeclarationStatement::resetTemplateNameSupport	(	bool &	nameResetFromMangledForm,
		SgName &	name
	)			[protected]

void SgDeclarationStatement::testForBadGenerateTemplateName

(

const std::string &

name

)

[protected]

bool SgDeclarationStatement::skipEmptyTemplateArgumentListTest

(

SgFunctionDeclaration *

functionDeclaration

)

[protected]

SgName SgDeclarationStatement::fixupTemplateNameForMangledNameSupport

(

const SgName &

s

)

const [protected]

SgName SgDeclarationStatement::generate_alternative_name_for_unnamed_declaration

(

SgNode *

parent

)

const [protected]

SgName SgDeclarationStatement::generate_alternative_name_for_unnamed_declaration_in_scope

(

SgScopeStatement *

scope

)

const [protected]

virtual void SgDeclarationStatement::fixupCopy	(	SgNode *	copy,
		SgCopyHelp &	help
	)			const [virtual]

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgEnumDeclaration, SgTemplateDeclaration, SgTemplateInstantiationDirectiveStatement, SgNamespaceDeclarationStatement, SgTypedefDeclaration, SgClassDeclaration, SgTemplateInstantiationDecl, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, and SgTemplateInstantiationFunctionDecl.

SgQualifiedNamePtrList& SgDeclarationStatement::get_qualifiedNameList

(

)

const SgQualifiedNamePtrList& SgDeclarationStatement::get_qualifiedNameList

(

)

const

void SgDeclarationStatement::set_qualifiedNameList

(

const SgQualifiedNamePtrList &

x

)

SgDeclarationStatement::get_symbol_from_symbol_table

(

)

const [virtual]

FOR INTERNAL USE Get the associated symbol from the symbol table in the stored scope. Users should use the SgDeclarationStatement::search_for_symbol_from_symbol_table() instead.

Reimplemented from SgStatement.

Reimplemented in SgEnumDeclaration, SgTemplateDeclaration, SgNamespaceDeclarationStatement, SgNamespaceAliasDeclarationStatement, SgTypedefDeclaration, SgClassDeclaration, SgTemplateInstantiationDecl, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, and SgTemplateInstantiationFunctionDecl.

SgDeclarationStatement* SgDeclarationStatement::get_declaration_associated_with_symbol

(

)

const

SgDeclarationStatement::search_for_symbol_from_symbol_table

(

)

const

User interface for retrieving the associated symbol from the declaration.

Returns:

Returns SgSymbol pointer.

Reimplemented in SgAttributeSpecificationStatement.

SgDeclarationStatement::hasAssociatedSymbol

(

)

const

Returns boolean value true of this type of declaration has an associated sysmbol.

Returns:

Returns bool.

For internal use only.

Only a few types of declarations do not have associated symbols (SgFunctionParameterList, SgCtorInitializerList, SgPragmaDeclaration, SgVariableDeclaration, SgVariableDefinition).

SgName SgDeclarationStatement::get_qualified_name_prefix

(

)

const

This function generates the qualified name prefix to be used with the named declaration (only applied to restricted set of declarations where name qualification can be used).

virtual std::string SgDeclarationStatement::class_name

(

)

const [virtual]

Copies AST (whole subtree, depending on the SgCopyHelp class returns a string representing the class name.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual VariantT SgDeclarationStatement::variantT

(

)

const [virtual]

returns new style SageIII enum values

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

void* SgDeclarationStatement::operator new

(

size_t

size

)

returns pointer to newly allocated IR node

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

void SgDeclarationStatement::operator delete	(	void *	pointer,
		size_t	size
	)

deallocated memory for IR node (returns memory to memory pool for reuse)

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

void SgDeclarationStatement::operator delete

(

void *

pointer

)

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

static size_t SgDeclarationStatement::numberOfNodes

(

)

[static]

Returns the total number of IR nodes of this type.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

static size_t SgDeclarationStatement::memoryUsage

(

)

[static]

Returns the size in bytes of the total memory allocated for all IR nodes of this type.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual std::vector<SgNode*> SgDeclarationStatement::get_traversalSuccessorContainer

(

)

[virtual]

FOR INTERNAL USE within ROSE traverals mechanism only.

This function builds and returns a copy of ordered container holding pointers to children of this node in a traversal. It is associated with the definition of a tree that is travered by the AST traversal mechanism; a tree that is embeded in the AST (which is a more general graph). This function is used within the implementation of the AST traversal and has a semantics may change in subtle ways that makes it difficult to use in user code. It can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Warning:

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns:

Returns ordered STL Container of pointers to children nodes in AST.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual std::vector<std::string> SgDeclarationStatement::get_traversalSuccessorNamesContainer

(

)

[virtual]

FOR INTERNAL USE within ROSE traverals mechanism only.

This function builds and returns a copy of ordered container holding strings used to name data members that are traversed in the IR node. It is associated with the definition of a tree that is travered by the AST traversal mechanism; a tree that is embeded in the AST (which is a more general graph). This function is used within the implementation of the AST traversal and has a semantics may change in subtle ways that makes it difficult to use in user code. It can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Warning:

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Each string is a name of a member variable holding a pointer to a child in the AST. The names are the same as used in the generated enums for accessing attributes in a traversal. The order is the same in which they are traversed and the same in which the access enums are defined. Therefore this method can be used to get the corresponding name (string) of an access enum which allows to produce more meaningful messages for attribute computations.

Returns:

Returns ordered STL container of names (strings) of access names to children nodes in AST.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual size_t SgDeclarationStatement::get_numberOfTraversalSuccessors

(

)

[virtual]

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual SgNode* SgDeclarationStatement::get_traversalSuccessorByIndex

(

size_t

idx

)

[virtual]

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual size_t SgDeclarationStatement::get_childIndex

(

SgNode *

child

)

[virtual]

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual RTIReturnType SgDeclarationStatement::roseRTI

(

)

[virtual]

FOR INTERNAL USE Access to Runtime Type Information (RTI) for this IR nodes.

This function provides runtime type information for accessing the structure of the current node. It is useful for generating code which would dump out or rebuild IR nodes.

Returns:

Returns a RTIReturnType object (runtime type information).

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual const char* SgDeclarationStatement::sage_class_name

(

)

const [virtual]

returns a C style string (char*) representing the class name

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

void SgDeclarationStatement::executeVisitorMemberFunction

(

ROSE_VisitorPattern &

visitor

)

FOR INTERNAL USE Support for visitor pattern.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual void SgDeclarationStatement::accept

(

ROSE_VisitorPattern &

visitor

)

[virtual]

DXN (08/09/2010): support for the classic visitor pattern done in GoF.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

static void SgDeclarationStatement::traverseMemoryPoolNodes

(

ROSE_VisitTraversal &

visit

)

[static]

FOR INTERNAL USE Support for visitor pattern.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

static void SgDeclarationStatement::traverseMemoryPoolVisitorPattern

(

ROSE_VisitorPattern &

visitor

)

[static]

FOR INTERNAL USE Support for visitor pattern.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

static void SgDeclarationStatement::visitRepresentativeNode

(

ROSE_VisitTraversal &

visit

)

[static]

FOR INTERNAL USE Support for type-based traversal.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual bool SgDeclarationStatement::isInMemoryPool

(

)

[virtual]

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual void SgDeclarationStatement::checkDataMemberPointersIfInMemoryPool

(

)

[virtual]

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual std::vector<std::pair<SgNode*,std::string> > SgDeclarationStatement::returnDataMemberPointers

(

)

const [virtual]

FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

This functions is part of general support for many possible tools to operate on the AST. The forms a list of ALL IR node pointers used by each IR node, and is a supperset of the get_traversalSuccessorContainer(). It is (I think) less than the set of pointers used by the AST file I/O. This is part of work implemented by Andreas, and support tools such as the AST graph generation.

Warning:

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns:

STL vector of pairs of SgNode* and strings

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual void SgDeclarationStatement::processDataMemberReferenceToPointers

(

ReferenceToPointerHandler *

)

[virtual]

FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

This functions similar to returnDataMemberPointers() except that it passes references to a handler object. As a result there is FAR more damage that can be done by using this function, but it is type-safe. This is provided for support of internal tools that operate on the AST, e.g the AST Merge mechanism.

Warning:

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

virtual long SgDeclarationStatement::getChildIndex

(

SgNode *

childNode

)

const [virtual]

FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

This function returns a unique value for the input childNode in set of children at this IR node. Note that a negative value indicates that the input node is not a child. This is the basis for the implementation of the isChild(SgNode*) member function. Data members that are NULL in the IR node are counted internally (so that this function returns value that could be statically defined, and so are not dynamically determined).

Warning:

The mapping on children to integer values could change from release to release of ROSE.

Returns:

long

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

SgDeclarationStatement* SgDeclarationStatement::addRegExpAttribute	(	std::string	s,
		AstRegExAttribute *	a
	)

Support for AST matching using regular expression.

This support is incomplete and the subject of current research to define RegEx trees to support inexact matching.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

void SgDeclarationStatement::post_construction_initialization

(

)

[virtual]

Final initialization for constructors This function is called at the end of generated constructors to allow the specification writer to add special initialization functions or tests. Default is to do nothing. Otherwise it should be overridden in the spec file, in NewHeaderCode/NewOutlinedCode.

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

unsigned int SgDeclarationStatement::get_decl_attributes

(

)

const

void SgDeclarationStatement::set_decl_attributes

(

unsigned int

decl_attributes

)

std::string SgDeclarationStatement::get_linkage

(

)

const

void SgDeclarationStatement::set_linkage

(

std::string

linkage

)

const SgDeclarationModifier& SgDeclarationStatement::get_declarationModifier

(

)

const

SgDeclarationStatement::get_declarationModifier

(

)

Returns SgDeclarationModifier object by reference (so that it can be set).

Returns:

Returns SgDeclarationModifier by reference.

bool SgDeclarationStatement::get_nameOnly

(

)

const

void SgDeclarationStatement::set_nameOnly

(

bool

nameOnly

)

bool SgDeclarationStatement::get_forward

(

)

const

void SgDeclarationStatement::set_forward

(

bool

forward

)

bool SgDeclarationStatement::get_externBrace

(

)

const

void SgDeclarationStatement::set_externBrace

(

bool

externBrace

)

bool SgDeclarationStatement::get_skipElaborateType

(

)

const

void SgDeclarationStatement::set_skipElaborateType

(

bool

skipElaborateType

)

SgDeclarationStatement::get_definingDeclaration

(

)

const

This is an access function for the SgDeclarationStatement::p_definingDeclaration data member (see that variable's documentation for details).

SgDeclarationStatement::set_definingDeclaration

(

SgDeclarationStatement *

definingDeclaration

)

This is an access function for the SgDeclarationStatement::p_definingDeclaration data member (see that variable's documentation for details).

SgDeclarationStatement::get_firstNondefiningDeclaration

(

)

const

This is an access function for the SgDeclarationStatement::p_firstNondefiningDeclaration data member (see that variable's documentation for details).

SgDeclarationStatement::set_firstNondefiningDeclaration

(

SgDeclarationStatement *

firstNondefiningDeclaration

)

This is an access function for the SgDeclarationStatement::p_firstNondefiningDeclaration data member (see that variable's documentation for details).

std::string SgDeclarationStatement::get_binding_label

(

)

const

void SgDeclarationStatement::set_binding_label

(

std::string

binding_label

)

---

Friends And Related Function Documentation

friend class AST_FILE_IO [friend]

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

friend class SgDeclarationStatementStorageClass [friend]

friend class AstSpecificDataManagingClass [friend]

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

friend class AstSpecificDataManagingClassStorageClass [friend]

Reimplemented from SgStatement.

Reimplemented in SgFunctionParameterList, SgVariableDeclaration, SgVariableDefinition, SgClinkageDeclarationStatement, SgClinkageStartStatement, SgClinkageEndStatement, SgEnumDeclaration, SgAsmStmt, SgAttributeSpecificationStatement, SgFormatStatement, SgTemplateDeclaration, SgTemplateClassDeclaration, SgTemplateFunctionDeclaration, SgTemplateMemberFunctionDeclaration, SgTemplateInstantiationDirectiveStatement, SgUseStatement, SgParameterStatement, SgNamespaceDeclarationStatement, SgEquivalenceStatement, SgInterfaceStatement, SgNamespaceAliasDeclarationStatement, SgCommonBlock, SgTypedefDeclaration, SgStatementFunctionStatement, SgCtorInitializerList, SgPragmaDeclaration, SgUsingDirectiveStatement, SgClassDeclaration, SgTemplateInstantiationDecl, SgDerivedTypeStatement, SgModuleStatement, SgImplicitStatement, SgUsingDeclarationStatement, SgNamelistStatement, SgImportStatement, SgFunctionDeclaration, SgMemberFunctionDeclaration, SgTemplateInstantiationMemberFunctionDecl, SgTemplateInstantiationFunctionDecl, SgProgramHeaderStatement, SgProcedureHeaderStatement, SgEntryStatement, SgContainsStatement, SgC_PreprocessorDirectiveStatement, SgIncludeDirectiveStatement, SgDefineDirectiveStatement, SgUndefDirectiveStatement, SgIfdefDirectiveStatement, SgIfndefDirectiveStatement, SgIfDirectiveStatement, SgDeadIfDirectiveStatement, SgElseDirectiveStatement, SgElseifDirectiveStatement, SgEndifDirectiveStatement, SgLineDirectiveStatement, SgWarningDirectiveStatement, SgErrorDirectiveStatement, SgEmptyDirectiveStatement, SgIncludeNextDirectiveStatement, SgIdentDirectiveStatement, SgLinemarkerDirectiveStatement, SgOmpThreadprivateStatement, SgFortranIncludeLine, SgJavaImportStatement, and SgStmtDeclarationStatement.

SgDeclarationStatement::isSgDeclarationStatement

(

SgNode *

s

)

[friend]

Casts pointer from base class to derived class.

This functions returns a SgDeclarationStatement pointer for any input of a pointer to an object derived from a SgDeclarationStatement.

Returns:

Returns valid pointer to SgDeclarationStatement if input is derived from a SgLocatedNode.

SgDeclarationStatement::isSgDeclarationStatement

(

const SgNode *

s

)

[friend]

Casts pointer from base class to derived class (for const pointers).

This functions returns a SgDeclarationStatement pointer for any input of a pointer to an object derived from a SgDeclarationStatement.

Returns:

Returns valid pointer to SgDeclarationStatement if input is derived from a SgLocatedNode.

SgDeclarationStatement* SgDeclarationStatement_getPointerFromGlobalIndex

(

unsigned long

globalIndex

)

[friend]

Constructor for use by AST File I/O MechanismTypedef used for low level memory access. Typedef used to hold memory addresses as values. Methods to find the pointer to a global and local index.

unsigned long SgDeclarationStatement_getNumberOfValidNodesAndSetGlobalIndexInFreepointer

(

unsigned

long

)

[friend]

Get the size of the memory pool.

It actually returns the size of the whole blocks allocated, no matter they contain valid pointers or not.

void SgDeclarationStatement_clearMemoryPool

(

)

[friend]

void SgDeclarationStatement_extendMemoryPoolForFileIO

(

unsigned

long

)

[friend]

void SgDeclarationStatement_getNextValidPointer

(

std::pair< SgDeclarationStatement *, std::vector< unsigned char * >::const_iterator > &

)

[friend]

void SgDeclarationStatement_resetValidFreepointers

(

)

[friend]

---

Member Data Documentation

SgDeclarationStatement::p_decl_attributes [protected]

This is old and used to be used to hold modifiers.

Deprecated:

This is part of an older modifier interface that was not fully implemented.

For internal use only.

This data member will be removed at some point.

SgDeclarationStatement::p_linkage [protected]

This string stores the value "C", "C++", or "fortran" to define the external linkage for generating linkable names.

The only values that make sense here are "C", "C++" is the assumed default and requires a NULL pointer value. And the use of "fortran" would be backend specific (may be rejected by some backend vendor compilers).

SgDeclarationStatement::p_declarationModifier [protected]

This is the mechanism to handle declaration modifiers.

See Stroustrup 3rd edition, Appendix A, for details of how modifiers are represented in ROSE.

For internal use only.

There is no interface to declaration modifiers implemented directly in this SgDeclarationStatement class. This was done to simplify the implementation. Users are expected to access the SgDeclarationmodifier object (returned by reference) directly to get/set its values.

SgDeclarationStatement::p_nameOnly [protected]

I think this is somewhat redundant with the purpose of specifying a forward declaration. Either that or it is information used by the unparser (Oh, I hope not!).

Deprecated:

This will likely be removed at some point.

For internal use only.

This mechanism is now redundnat with the better support for defining/nondefining declarations.

SgDeclarationStatement::p_forward [protected]

This marks a declaration as being an explicit forward declaration.

All non-defining declaations are marked as forward declarations, while a defining declaration is NOT a marked as a forward declaration.

For internal use only.

It is not clear enough to just use defining vs. nondefining declarations to know when something is a forward declaration!

SgDeclarationStatement::p_externBrace [protected]

This marks that the declaration appeared with "extern".

Note that I think this is also set even if it appears between "extern {" and "}". It might be that this is a way to specify the first "extern {", but I don't think it is used interanlly and it is not clear if attaching the "extern {" to a declaration is a great way to handle this problem generally (appears to be overlly sensative to transformations that would add, remove, or move declarations (e.g in inlining and outlining transformations).

Currently the lex pass saves all "extern \"C\" {" declarations and treats them as CPP directive (along with comments), they are then woven back into the AST as a separate pass.

Deprecated:

This is now redundant with the seperate preprocessing phase.

For internal use only.

Not sure that we need or want this mechanism (or this implementation of it). Not that the mechanism that we have is better and based on the scanning for extern "X" in the source code directly (where "X" is either "C", "C++", or "fortran".

SgDeclarationStatement::p_skipElaborateType [protected]

This marks "type elaboration" which is the use of the keyword "class" before variables of type class.

This is not often required, but is routinely output by the unparser to be conservative. The support for hidden lists allows the unparser to more precisely output the type elaboration, and so this variable is redundant.

Deprecated:

This is now redundant with the hidden list analysis done to support more accurate code generation.

For internal use only.

This field is used in a default mode and could be set to be more accurate.

SgDeclarationStatement::p_definingDeclaration [protected]

This pointer is valid only if a defining declaration exists, and stores the defining declaration where the declaration was defined.

It is important to note that this is the only defining declaration as opposed to the non-defining declarations (where there can, depending on IR node, often be many).

For internal use only.

The value held is not shared within the Sage III AST (except though this data member in each defining and non-defining declaration).

SgDeclarationStatement::p_firstNondefiningDeclaration [protected]

This pointer is valid if there is a non-defining declaration, and stores the first non-defining declaration where a declaration was made explicitly (as in forward declaration) or implicitly as in the case of a few IR nodes (e.g. SgClassDeclaration). See description of SgDeclarationStatement.

It is important to note that this is the first non-defining declaration as opposed to the defining declaration. Thus it is usually the first forward declaration.

For internal use only.

The value held is sharable across many references where as the defining declaration (not held by this variable) should have one unique reference within the AST, except where reference though the declarations definingDeclaration data member pointer. See declarations for details (SgDeclarationStatements).

SgQualifiedNamePtrList SgDeclarationStatement::p_qualifiedNameList [protected]

std::string SgDeclarationStatement::p_binding_label [protected]

---

The documentation for this class was generated from the following files:

• Cxx_Grammar.h
• SgDeclarationStatement.docs

---
