SgInitializedName Class Reference

Description

This class represents the notion of a declared variable.

Each variable in the program has a SgInitializedName object which represents its definition. A SgVariableDeclaration for example might contain several SgInitializedName objects, while the SgInitializedName contains the declaration for one variable. Each variable use (VarRefExp for example) must have a link to the SgInitializedName object where that specific variable was defined.

What really happens

Currently, each SgVariableDeclaration contains only one SgInitializedName

In order to have a valid SgInitializedName object, this information must be provided :

• the variable name which represents the variable that is being declared in this class.
• the variable type
• the declaration object which contains the SgInitializedName ( this might be a SgVariableDeclaration, SgFunctionParameterList, SgClassDeclaration,etc)

See also

Example of creating an SgInitializedName object

Example of using an SgInitializedName object

Definition at line 97176 of file Cxx_Grammar.h.

Inheritance diagram for SgInitializedName:

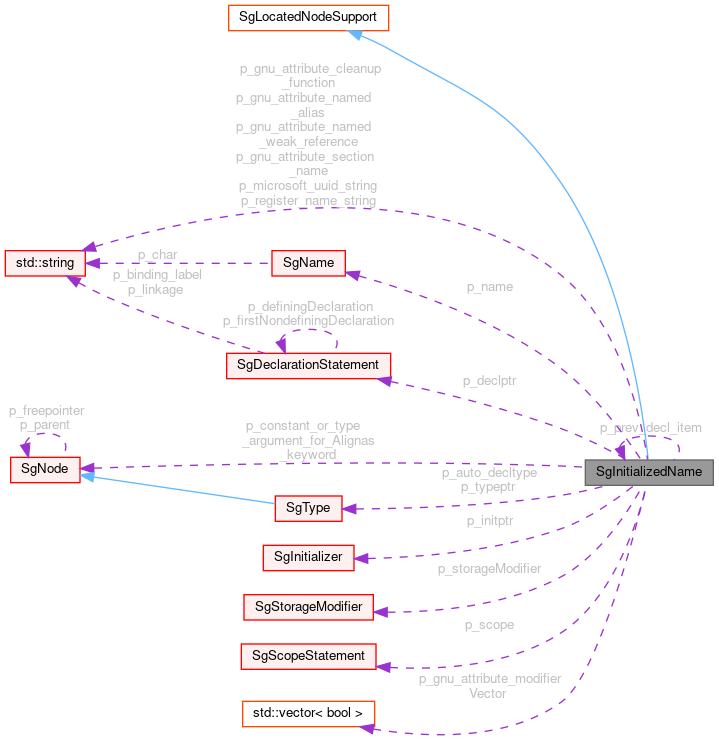

Collaboration diagram for SgInitializedName:

Public Types
enum	preinitialization_enum {   e_unknown_preinitialization = 0,   e_virtual_base_class = 1,   e_nonvirtual_base_class = 2,   e_data_member = 3,   e_delegation_constructor = 4,   e_last_preinitialization }
	Preinitialization Enum (only one value can be specified) More...
enum	asm_register_name_enum {   e_invalid_register = 0,   e_memory_register,   e_register_a,   e_register_b,   e_register_c,   e_register_d,   e_register_si,   e_register_di,   e_register_bp,   e_register_sp,   e_register_r8,   e_register_r9,   e_register_r10,   e_register_r11,   e_register_r12,   e_register_r13,   e_register_r14,   e_register_r15,   e_register_st0,   e_register_st1,   e_register_st2,   e_register_st3,   e_register_st4,   e_register_st5,   e_register_st6,   e_register_st7,   e_register_mm0,   e_register_mm1,   e_register_mm2,   e_register_mm3,   e_register_mm4,   e_register_mm5,   e_register_mm6,   e_register_mm7,   e_register_f0,   e_register_f1,   e_register_f2,   e_register_f3,   e_register_f4,   e_register_f5,   e_register_f6,   e_register_f7,   e_register_f8,   e_register_f9,   e_register_f10,   e_register_f11,   e_register_f12,   e_register_f13,   e_register_f14,   e_register_f15,   e_register_flags,   e_register_fpsr,   e_register_dirflag,   e_register_f16,   e_register_f17,   e_register_f18,   e_register_f19,   e_register_f20,   e_unrecognized_register,   e_last_register }
	Register names (x86 specific GNU names). More...
enum	gnu_variable_attribute_enum {   e_gnu_attribute__weak__ = 0,   e_gnu_attribute__unused__ = 1,   e_gnu_attribute__used__ = 2,   e_gnu_attribute__deprecated__ = 3,   e_gnu_attribute__nocommon__ = 4,   e_gnu_attribute__transparent_union__ = 5,   e_gnu_attribute__weakref__ = 6,   e_gnu_attribute__packed__ = 7,   e_gnu_attribute__noreturn__ = 8,   e_gnu_attribute__noreorder__ = 9,   e_ms_declspec_parameter_appdomain = 10,   e_ms_declspec_parameter_deprecated = 11,   e_ms_declspec_parameter_dllimport = 12,   e_ms_declspec_parameter_dllexport = 13,   e_ms_declspec_parameter_novtable = 14,   e_ms_declspec_parameter_process = 15,   e_ms_declspec_parameter_property = 16,   e_ms_declspec_parameter_restrict = 17,   e_ms_declspec_parameter_selectany = 18,   e_ms_declspec_parameter_thread = 19,   e_ms_declspec_parameter_uuid = 20,   e_last_gnu_variable_attribute }
enum	excess_specifier_enum {   e_excess_specifier_none = 0,   e_excess_specifier_positionals,   e_excess_specifier_keywords,   e_excess_specifier_last }
enum	{ static_variant = V_SgInitializedName }
	static variant value
typedef SgLocatedNodeSupport	base_node_type
Public Types inherited from SgLocatedNodeSupport
enum	{ static_variant = V_SgLocatedNodeSupport }
	static variant value
typedef SgLocatedNode	base_node_type
Public Types inherited from SgLocatedNode
enum	{ static_variant = V_SgLocatedNode }
	static variant value
typedef SgNode	base_node_type
Public Types inherited from SgNode
enum	{ static_variant = V_SgNode }
	static variant value

Public Member Functions
virtual SgNode *	copy (SgCopyHelp &help) const override
	It clones the current SgInitializedName object recursively or not, depending on the argument. More...
bool	checkBit (unsigned int bit) const
void	setBit (unsigned int bit)
void	unsetBit (unsigned int bit)
bool	isGnuAttributeWeak () const
void	setGnuAttributeWeak ()
void	unsetGnuAttributeWeak ()
bool	isGnuAttributeUnused () const
void	setGnuAttributeUnused ()
void	unsetGnuAttributeUnused ()
bool	isGnuAttributeUsed () const
void	setGnuAttributeUsed ()
void	unsetGnuAttributeUsed ()
bool	isGnuAttributeDeprecated () const
void	setGnuAttributeDeprecated ()
void	unsetGnuAttributeDeprecated ()
bool	isGnuAttributeNoCommon () const
void	setGnuAttributeNoCommon ()
void	unsetGnuAttributeNoCommon ()
bool	isGnuAttributeTransparentUnion () const
void	setGnuAttributeTransparentUnion ()
void	unsetGnuAttributeTransparentUnion ()
bool	isGnuAttributeWeakReference () const
void	setGnuAttributeWeakReference ()
void	unsetGnuAttributeWeakReference ()
bool	isGnuAttributePacked () const
void	setGnuAttributePacked ()
void	unsetGnuAttributePacked ()
bool	isGnuAttributeNoReturn () const
void	setGnuAttributeNoReturn ()
void	unsetGnuAttributeNoReturn ()
bool	isGnuAttributeNoReorder () const
void	setGnuAttributeNoReorder ()
void	unsetGnuAttributeNoReorder ()
bool	is_ms_declspec_parameter_appdomain () const
void	set_ms_declspec_parameter_appdomain ()
void	unset_ms_declspec_parameter_appdomain ()
bool	is_ms_declspec_parameter_deprecated () const
void	set_ms_declspec_parameter_deprecated ()
void	unset_ms_declspec_parameter_deprecated ()
bool	is_ms_declspec_parameter_dllimport () const
void	set_ms_declspec_parameter_dllimport ()
void	unset_ms_declspec_parameter_dllimport ()
bool	is_ms_declspec_parameter_dllexport () const
void	set_ms_declspec_parameter_dllexport ()
void	unset_ms_declspec_parameter_dllexport ()
bool	is_ms_declspec_parameter_novtable () const
void	set_ms_declspec_parameter_novtable ()
void	unset_ms_declspec_parameter_novtable ()
bool	is_ms_declspec_parameter_process () const
void	set_ms_declspec_parameter_process ()
void	unset_ms_declspec_parameter_process ()
bool	is_ms_declspec_parameter_restrict () const
void	set_ms_declspec_parameter_restrict ()
void	unset_ms_declspec_parameter_restrict ()
bool	is_ms_declspec_parameter_selectany () const
void	set_ms_declspec_parameter_selectany ()
void	unset_ms_declspec_parameter_selectany ()
bool	is_ms_declspec_parameter_thread () const
void	set_ms_declspec_parameter_thread ()
void	unset_ms_declspec_parameter_thread ()
bool	is_ms_declspec_parameter_uuid () const
void	set_ms_declspec_parameter_uuid ()
void	unset_ms_declspec_parameter_uuid ()
void	post_construction_initialization () override
	Allocates a new storage modifier and sets the storage modifier to default values.
virtual unsigned int	cfgIndexForEnd () const override
	Determine the CFG index for the end of this construct.
virtual bool	cfgIsIndexInteresting (unsigned int index) const override
	Determine whether a particular CFG node index is "interesting" for this kind of node.
virtual unsigned int	cfgFindChildIndex (SgNode *n) override
	Find the index of n in this node's CFG children.
virtual unsigned int	cfgFindNextChildIndex (SgNode *n) override
	Find the index just after n in this node's CFG children.
virtual std::vector< VirtualCFG::CFGEdge >	cfgOutEdges (unsigned int index) override
	Find the out edges of a CFG node – internal version.
virtual std::vector< VirtualCFG::CFGEdge >	cfgInEdges (unsigned int index) override
	Find the in edges of a CFG node – internal version.
SgStorageModifier &	get_storageModifier ()
	returns a reference to the storage modifier
const SgStorageModifier &	get_storageModifier () const
	SgInitializedName (const SgName &name, SgType *typeptr, SgInitializer *iptr=0, SgDeclarationStatement *declptr=0, SgInitializedName *prev_decl_item=0) ROSE_DEPRECATED_FUNCTION
	SgInitializedName (Sg_File_Info *fileInfo, const SgName &name, SgType *typeptr, SgInitializer *iptr, SgDeclarationStatement *declptr, SgScopeStatement *scope, SgInitializedName *prev_itemptr)
	This is the constructor. More...
	SgInitializedName (const SgInitializedName &ptr)
	This is the copy constructor.
SgInitializedName &	operator= (const SgInitializedName &ptr)
	assignment operator. It copies everything (including pointers) from the rhs object to the lhs object More...
bool	operator== (const SgInitializedName &) const
	Equal operator : it checks if all the data members are the same or point to the same objects. More...
bool	operator< (const SgInitializedName &) const
SgType *	get_type () const
void	set_type (SgType *t)
SgInitializer *	get_initializer () const
void	set_initializer (SgInitializer *i)
SgDeclarationStatement *	get_declaration () const
	Equal operator : it checks if all the data members are the same or point to the same objects. More...
SgDeclarationStatement *	get_definition () const
void	set_definition (SgDeclarationStatement *def)
SgName	get_qualified_name () const
	Returns the name with appropriate qualified names representing nested scopes.
virtual SgName	get_mangled_name (void) const
SgSymbol *	get_symbol_from_symbol_table () const
	Get the associated SgSymbol from the symbol table located in the scope, without considering possible prev_decl_item. Internal use only. Users should use search_for_symbol_from_symbol_table() instead. More...
SgSymbol *	search_for_symbol_from_symbol_table () const
	User interface for retrieving the associated symbol. It searches through the possible chain of prev_decl_item.
virtual void	fixupCopy (SgNode *copy, SgCopyHelp &help) const
SgName	get_qualified_name_prefix () const
int	get_name_qualification_length () const
void	set_name_qualification_length (int name_qualification_length_for_type)
bool	get_type_elaboration_required () const
void	set_type_elaboration_required (bool type_elaboration_required_for_type)
bool	get_global_qualification_required () const
void	set_global_qualification_required (bool global_qualification_required_for_type)
SgName	get_qualified_name_prefix_for_type () const
	This function generates the qualified name prefix to be used with the named declaration (only applied to restricted set of declarations where name qualification can be used).
int	get_name_qualification_length_for_type () const
void	set_name_qualification_length_for_type (int name_qualification_length_for_type)
bool	get_type_elaboration_required_for_type () const
void	set_type_elaboration_required_for_type (bool type_elaboration_required_for_type)
bool	get_global_qualification_required_for_type () const
void	set_global_qualification_required_for_type (bool global_qualification_required_for_type)
virtual void	addNewAttribute (std::string s, AstAttribute *a) override
	Add a new attribute represented by the named string.
virtual AstAttribute *	getAttribute (std::string s) const override
	Returns attribute of name 's'.
virtual void	updateAttribute (std::string s, AstAttribute *a) override
	Replace existing attribute of name 's' with new AstAttribute.
virtual void	setAttribute (std::string s, AstAttribute *a) override
	This is a wrapper function with the following semantics: if no attribute of name 's' exists then addNewAttribute(s,a); is called, otherwise updateAttribute(s,a); is called.
virtual void	removeAttribute (std::string s) override
	Remove attribute of name 's' if present.
virtual bool	attributeExists (std::string s) const override
	Tests if attribute of name 's' is present.
virtual int	numberOfAttributes () const override
	Returns the number of attributes on this IR node.
virtual std::string	class_name () const override
	returns a string representing the class name
virtual VariantT	variantT () const override
	returns new style SageIII enum values
void *	operator new (size_t size)
	returns pointer to newly allocated IR node
void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)
void	operator delete (void *pointer)
virtual std::vector< SgNode * >	get_traversalSuccessorContainer () override
	container of pointers to AST successor nodes used in the traversal overridden in every class by generated implementation
virtual std::vector< std::string >	get_traversalSuccessorNamesContainer () override
	container of names of variables or container indices used used in the traversal to access AST successor nodes overridden in every class by generated implementation
virtual size_t	get_numberOfTraversalSuccessors () override
	return number of children in the traversal successor list
virtual SgNode *	get_traversalSuccessorByIndex (size_t idx) override
	index-based access to traversal successors by index number
virtual size_t	get_childIndex (SgNode *child) override
	index-based access to traversal successors by child node
virtual RTIReturnType	roseRTI () override
	return C++ Runtime-Time-Information
virtual const char *	sage_class_name () const override ROSE_DEPRECATED_FUNCTION
void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
virtual void	accept (ROSE_VisitorPattern &visitor) override
	support for the classic visitor pattern done in GoF
virtual bool	isInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap. More...
virtual void	checkDataMemberPointersIfInMemoryPool () override
	FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap. More...
virtual std::vector< std::pair< SgNode *, std::string > >	returnDataMemberPointers () const override
	FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools More...
virtual void	processDataMemberReferenceToPointers (ReferenceToPointerHandler *) override
	FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools More...
virtual long	getChildIndex (SgNode *childNode) const override
	FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node. More...
	SgInitializedName (const SgInitializedNameStorageClass &source)
	IR node constructor to support AST File I/O.
SgInitializedName *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression. More...
SgName	get_name () const
void	set_name (SgName name)
std::string	get_microsoft_uuid_string () const
void	set_microsoft_uuid_string (std::string microsoft_uuid_string)
SgType *	get_typeptr () const
void	set_typeptr (SgType *typeptr)
SgInitializer *	get_initptr () const
void	set_initptr (SgInitializer *initptr)
SgInitializedName *	get_prev_decl_item () const
void	set_prev_decl_item (SgInitializedName *prev_decl_item)
SgDeclarationStatement *	get_declptr () const
void	set_declptr (SgDeclarationStatement *declptr)
SgScopeStatement *	get_scope () const
void	set_scope (SgScopeStatement *scope)
SgInitializedName::preinitialization_enum	get_preinitialization () const
void	set_preinitialization (SgInitializedName::preinitialization_enum preinitialization)
bool	get_isCoArray () const
void	set_isCoArray (bool isCoArray)
SgInitializedName::asm_register_name_enum	get_register_name_code () const
void	set_register_name_code (SgInitializedName::asm_register_name_enum register_name_code)
SgInitializedName::excess_specifier_enum	get_excess_specifier () const
void	set_excess_specifier (SgInitializedName::excess_specifier_enum excess_specifier)
std::string	get_register_name_string () const
void	set_register_name_string (std::string register_name_string)
bool	get_requiresGlobalNameQualificationOnType () const
void	set_requiresGlobalNameQualificationOnType (bool requiresGlobalNameQualificationOnType)
bool	get_shapeDeferred () const
void	set_shapeDeferred (bool shapeDeferred)
bool	get_initializationDeferred () const
void	set_initializationDeferred (bool initializationDeferred)
SgBitVector	get_gnu_attribute_modifierVector () const
void	set_gnu_attribute_modifierVector (SgBitVector gnu_attribute_modifierVector)
unsigned long int	get_gnu_attribute_initialization_priority () const
void	set_gnu_attribute_initialization_priority (unsigned long int gnu_attribute_initialization_priority)
std::string	get_gnu_attribute_named_weak_reference () const
void	set_gnu_attribute_named_weak_reference (std::string gnu_attribute_named_weak_reference)
std::string	get_gnu_attribute_named_alias () const
void	set_gnu_attribute_named_alias (std::string gnu_attribute_named_alias)
std::string	get_gnu_attribute_cleanup_function () const
void	set_gnu_attribute_cleanup_function (std::string gnu_attribute_cleanup_function)
std::string	get_gnu_attribute_section_name () const
void	set_gnu_attribute_section_name (std::string gnu_attribute_section_name)
int	get_gnu_attribute_alignment () const
void	set_gnu_attribute_alignment (int gnu_attribute_alignment)
SgDeclarationModifier::gnu_declaration_visability_enum	get_gnu_attribute_visability () const
void	set_gnu_attribute_visability (SgDeclarationModifier::gnu_declaration_visability_enum gnu_attribute_visability)
bool	get_protected_declaration () const
void	set_protected_declaration (bool protected_declaration)
bool	get_hasArrayTypeWithEmptyBracketSyntax () const
void	set_hasArrayTypeWithEmptyBracketSyntax (bool hasArrayTypeWithEmptyBracketSyntax)
bool	get_using_C11_Alignas_keyword () const
void	set_using_C11_Alignas_keyword (bool using_C11_Alignas_keyword)
SgNode *	get_constant_or_type_argument_for_Alignas_keyword () const
void	set_constant_or_type_argument_for_Alignas_keyword (SgNode *constant_or_type_argument_for_Alignas_keyword)
bool	get_using_auto_keyword () const
void	set_using_auto_keyword (bool using_auto_keyword)
SgType *	get_auto_decltype () const
void	set_auto_decltype (SgType *auto_decltype)
bool	get_using_device_keyword () const
void	set_using_device_keyword (bool using_device_keyword)
bool	get_is_braced_initialized () const
void	set_is_braced_initialized (bool is_braced_initialized)
bool	get_using_assignment_copy_constructor_syntax () const
void	set_using_assignment_copy_constructor_syntax (bool using_assignment_copy_constructor_syntax)
bool	get_needs_definitions () const
void	set_needs_definitions (bool needs_definitions)
bool	get_is_parameter_pack () const
void	set_is_parameter_pack (bool is_parameter_pack)
bool	get_is_pack_element () const
void	set_is_pack_element (bool is_pack_element)
	SgInitializedName (Sg_File_Info *startOfConstruct, SgName name=NULL, SgType *typeptr=NULL)
	SgInitializedName (SgName name, SgType *typeptr)
Public Member Functions inherited from SgLocatedNodeSupport
void *	operator new (size_t size)
	returns pointer to newly allocated IR node
void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)
void	operator delete (void *pointer)
void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
	SgLocatedNodeSupport (const SgLocatedNodeSupportStorageClass &source)
	IR node constructor to support AST File I/O.
SgLocatedNodeSupport *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression. More...
	SgLocatedNodeSupport (Sg_File_Info *startOfConstruct)
Public Member Functions inherited from SgLocatedNode
const std::string &	getFilenameString () const
void	addToAttachedPreprocessingInfo (PreprocessingInfo *prepInfoPtr, PreprocessingInfo::RelativePositionType locationInList=PreprocessingInfo::after)
	This function adds comment or CPP directives to the current IR node. More...
void	insertToAttachedPreprocessingInfo (PreprocessingInfo *prepInfoPtr, PreprocessingInfo *anchorInfoPtr, bool insertAfter=true)
	Insert prepInfo After (or before if last parameter is false) an anchor info ptr in the list of preprocessing info attached to the current node. This is useful to insert things in the middle.
virtual Sg_File_Info *	get_file_info () const override
	Interface function to implement original SAGE interface to SgFile_Info objects. More...
virtual void	set_file_info (Sg_File_Info *X)
	Access function calls set_startingConstruct(Sg_File_Info*) member function.
void	setCompilerGenerated ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as compiler generated. More...
void	unsetCompilerGenerated ()
bool	isCompilerGenerated () const
	Simple test for if this is a compiler generated node. More...
void	setTransformation ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as a transformation. More...
void	unsetTransformation ()
bool	isTransformation () const
	Simple test for if this is a part of a transformation. More...
void	setFrontendSpecific ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as front-end specific (generated by the front-end to support a specific backend compiler; e.g. GNU gcc and g++). More...
void	unsetFrontendSpecific ()
bool	isFrontendSpecific () const
	Simple test for if this is a frontend specific IR node. More...
void	setShared ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as shared. More...
void	unsetShared ()
bool	isShared () const
	Simple test for if this is a shared IR node. More...
void	setSourcePositionUnavailableInFrontend ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as to when the information was unavilable in the front-end (even if it typically is there are special cases). More...
void	unsetSourcePositionUnavailableInFrontend ()
void	setOutputInCodeGeneration ()
	Allow IR nodes (mostly SgLocatedNode) to be marked as to when the information was unavilable in the front-end (even if it typically is there are special cases). More...
void	unsetOutputInCodeGeneration ()
bool	isOutputInCodeGeneration () const
int	get_physical_file_id ()
	Allow IR nodes (mostly SgLocatedNode) to be queried for there physical file ID. More...
AttachedPreprocessingInfoType *&	getAttachedPreprocessingInfo (void)
	Computes the number of nodes in the defined subtree of the AST. More...
Sg_File_Info *	generateMatchingFileInfo ()
void *	operator new (size_t size)
	returns pointer to newly allocated IR node
void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)
void	operator delete (void *pointer)
void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
	SgLocatedNode (const SgLocatedNodeStorageClass &source)
	IR node constructor to support AST File I/O.
SgLocatedNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression. More...
Sg_File_Info *	get_startOfConstruct () const override
	New function interface for Sg_File_Info data stores starting location of contruct (typically the opening brace or first letter of keyword).
void	set_startOfConstruct (Sg_File_Info *startOfConstruct)
	This function sets the current source location position of the start of the current construct. More...
Sg_File_Info *	get_endOfConstruct () const override
	New function interface for Sg_File_Info data stores ending location of contruct (typically the closing brace).
void	set_endOfConstruct (Sg_File_Info *endOfConstruct)
	This function sets the current source location position of the end of the current construct. More...
AttachedPreprocessingInfoType *	get_attachedPreprocessingInfoPtr () const
void	set_attachedPreprocessingInfoPtr (AttachedPreprocessingInfoType *attachedPreprocessingInfoPtr)
AstAttributeMechanism *	get_attributeMechanism () const override
	FOR INTERNAL USE Access function; if an attribute exists then a pointer to it is returned, else error. More...
void	set_attributeMechanism (AstAttributeMechanism *attributeMechanism) override
	FOR INTERNAL USE Access function; sets poiner to value AstAttributeMechanism. More...
bool	get_containsTransformationToSurroundingWhitespace () const
void	set_containsTransformationToSurroundingWhitespace (bool containsTransformationToSurroundingWhitespace)
virtual	~SgLocatedNode ()
	This is the destructor. More...
	SgLocatedNode (Sg_File_Info *startOfConstruct=NULL)
	This is the constructor. More...
Public Member Functions inherited from SgNode
void *	operator new (size_t size)
	returns pointer to newly allocated IR node
void	operator delete (void *pointer, size_t size)
	deallocated memory for IR node (returns memory to memory pool for reuse)
void	operator delete (void *pointer)
void	executeVisitorMemberFunction (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
	SgNode (const SgNodeStorageClass &source)
	IR node constructor to support AST File I/O.
SgNode *	addRegExpAttribute (std::string s, AstRegExAttribute *a)
	Support for AST matching using regular expression. More...
void	set_isModified (bool isModified)
	All nodes in the AST contain a isModified flag used to track changes to the AST. More...
void	set_containsTransformation (bool containsTransformation)
	Many nodes can hide other AST nodes and we need to track when outer nodes contain modified nodes even if they are not themselves modified. More...
bool	get_isModified () const
	Acess function for isModified flag. More...
bool	get_containsTransformation () const
	Acess function for containsTransformation flag. More...
void	set_parent (SgNode *parent)
	All nodes in the AST contain a reference to a parent node. More...
SgNode *	get_parent () const
	Access function for parent node. More...
SgNode *	get_raw_parent () const
	Access function for direct access to uncomputed value of parent node.
bool	isChild (SgNode *node) const
	Query function for if the input IR nodes is a child of the current IR node.
virtual std::string	unparseToString (SgUnparse_Info *info) const
	This function unparses the AST node (excluding comments and unnecessary white space)
std::string	unparseToString () const
std::string	unparseToCompleteString ()
	This function unparses the AST node (including comments and white space) More...
int	variant () const ROSE_DEPRECATED_FUNCTION
	Older version function returns enum value "NODE". More...
VirtualCFG::CFGNode	cfgForBeginning ()
	Returns the CFG node for just before this AST node.
VirtualCFG::CFGNode	cfgForEnd ()
	Returns the CFG node for just after this AST node.
int	numberOfNodesInSubtree ()
	Computes the number of nodes in the defined subtree of the AST. More...
int	depthOfSubtree ()
	Computes the depth of the current defined subtree of the AST. More...
template<class T >
T *	initParentPointer (T *child, SgNode *parent)
	Generated for tree edge data member initializations. More...
SgNode *	get_freepointer () const
void	set_freepointer (SgNode *freepointer)
virtual	~SgNode ()
	This is the destructor. More...
	SgNode ()
	This is the constructor. More...
bool	get_isVisited () const ROSE_DEPRECATED_FUNCTION
	DOCS IN HEADER: Access function for p_isVisited flag used previously by the AST traversals. More...
void	set_isVisited (bool isVisited) ROSE_DEPRECATED_FUNCTION
	Access function for p_isVisited flag used previously by the AST traversals. More...
template<class T >
std::enable_if< std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child. More...
template<class T >
std::enable_if< !std::is_pointer< T >::value, void >::type	changeChildPointer (T &edge, T const &child)
	Set a child edge in a tree to point to a specific child. More...

Static Public Member Functions
static void	deleteMemoryPool ()
static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.
static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.
static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.
static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.
static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.
static SgInitializedName *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.
static std::string	getNodeIdString (SgInitializedName *sgnode)
	compute the NodeId for a particular SgNode*.
static std::string	getNodeIdStringInternal (SgInitializedName *sgnode)
Static Public Member Functions inherited from SgLocatedNodeSupport
static void	deleteMemoryPool ()
static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.
static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.
static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.
static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.
static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.
static SgLocatedNodeSupport *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.
static std::string	getNodeIdString (SgLocatedNodeSupport *sgnode)
	compute the NodeId for a particular SgNode*.
static std::string	getNodeIdStringInternal (SgLocatedNodeSupport *sgnode)
Static Public Member Functions inherited from SgLocatedNode
static void	deleteMemoryPool ()
static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.
static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.
static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.
static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.
static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.
static SgLocatedNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.
static std::string	getNodeIdString (SgLocatedNode *sgnode)
	compute the NodeId for a particular SgNode*.
static std::string	getNodeIdStringInternal (SgLocatedNode *sgnode)
Static Public Member Functions inherited from SgNode
static void	deleteMemoryPool ()
static size_t	numberOfNodes ()
	Returns the total number of IR nodes of this type.
static size_t	memoryUsage ()
	Returns the size in bytes of the total memory allocated for all IR nodes of this type.
static void	traverseMemoryPoolNodes (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for visitor pattern over all IR nodes by type of IR node.
static void	traverseMemoryPoolVisitorPattern (ROSE_VisitorPattern &visitor)
	FOR INTERNAL USE Support for visitor pattern.
static void	visitRepresentativeNode (ROSE_VisitTraversal &visit)
	FOR INTERNAL USE Support for type-based traversal.
static SgNode *	getNodeByNodeId (VariantT variantT, size_t poolIdx, size_t itemIdx)
	Find a node by its variant type, pool index, and item index.
static SgNode *	getNodeByNodeIdInternal (size_t poolIdx, size_t itemIdx)
	FOR INTERNAL USE Find an SgNode from its memory pool and location therin.
static std::string	getNodeIdString (SgNode *sgnode)
	compute the NodeId for a particular SgNode*.
static std::string	getNodeIdStringInternal (SgNode *sgnode)
static std::vector< std::string >	buildCommandLineToSubstituteTransformationFile (const std::vector< std::string > &argv, std::string newFileName)
	Command line support for this compilation The command line is saved as a static variable so that it will be available to support the rewrite mechanism. More...
static std::vector< VariantT >	getClassHierarchySubTreeFunction (VariantT v)
static void	getClassHierarchySubTreeFunction (VariantT v, std::vector< VariantT > &)
static std::map< SgNode *, std::string > &	get_globalMangledNameMap ()
	Access function for performance optimizing global mangled name map. More...
static void	clearGlobalMangledNameMap ()
	Support to clear the performance optimizing global mangled name map.
static std::map< std::string, int > &	get_shortMangledNameCache ()
	Access function for lower level optimizing of global mangled name map. More...
static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForNames ()
	Access function for name qualification support (for names). More...
static void	set_globalQualifiedNameMapForNames (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names). More...
static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTypes ()
	Access function for name qualification support (for type). More...
static void	set_globalQualifiedNameMapForTypes (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for type). More...
static std::map< SgNode *, std::map< SgNode *, std::string > > &	get_globalQualifiedNameMapForMapsOfTypes ()
	Access function for name qualification support (for maps of types). More...
static void	set_globalQualifiedNameMapForMapsOfTypes (const std::map< SgNode *, std::map< SgNode *, std::string > > &X)
	Access function for name qualification support (for maps of types). More...
static std::map< SgNode *, std::string > &	get_globalQualifiedNameMapForTemplateHeaders ()
	Access function for name qualification support (for template headers in template declarations). More...
static void	set_globalQualifiedNameMapForTemplateHeaders (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for template headers in template declarations). More...
static std::map< SgNode *, std::string > &	get_globalTypeNameMap ()
	Access function for name qualification support (for names of types). More...
static void	set_globalTypeNameMap (const std::map< SgNode *, std::string > &X)
	Access function for name qualification support (for names of types). More...
static SgFunctionTypeTable *	get_globalFunctionTypeTable ()
	Access function for symbol table specific to function types.
static void	set_globalFunctionTypeTable (SgFunctionTypeTable *globalFunctionTypeTable)
	Access function for symbol table specific to function types.
static SgTypeTable *	get_globalTypeTable ()
	Access function for symbol table specific to non-function types.
static void	set_globalTypeTable (SgTypeTable *globalTypeTable)
	Access function for symbol table specific to non-function types.
static VariantT	variantFromPool (SgNode const *n)
template<class T >
static std::enable_if< std::is_base_of< SgNode, T >::value, T * >::type	createAndParent (SgNode *parent)
	Allocate and return a new node after setting its parent. More...

Protected Attributes
SgName	p_name
	The variable that is declared in this declaration. More...
std::string	p_microsoft_uuid_string
SgType *	p_typeptr
	Pointer to a type object that has been associated with SgInitializedName::p_name. More...
SgInitializer *	p_initptr
	Pointer to an initializer for the variable. More...
SgInitializedName *	p_prev_decl_item
	Pointer to the initial uses of this variable previous to its redeclaration declaration. More...
bool	p_is_initializer
	flag to determine whether the declaration has an initializer. More...
SgDeclarationStatement *	p_declptr
	Pointer to the declaration object where this SgInitializedName object belongs to. More...
SgStorageModifier *	p_storageModifier
	This is the storage modifier (static, auto, register, mutable, asm, etc.). More...
SgScopeStatement *	p_scope
	This pointer is always valid and stores the current scope of the variable. More...
SgInitializedName::preinitialization_enum	p_preinitialization
	This data member stores an enum value. More...
bool	p_isCoArray
SgInitializedName::asm_register_name_enum	p_register_name_code
	Code (following GNU standard) for register name. More...
SgInitializedName::excess_specifier_enum	p_excess_specifier
std::string	p_register_name_string
bool	p_requiresGlobalNameQualificationOnType
bool	p_shapeDeferred
bool	p_initializationDeferred
SgBitVector	p_gnu_attribute_modifierVector
unsigned long int	p_gnu_attribute_initialization_priority
std::string	p_gnu_attribute_named_weak_reference
std::string	p_gnu_attribute_named_alias
std::string	p_gnu_attribute_cleanup_function
std::string	p_gnu_attribute_section_name
int	p_gnu_attribute_alignment
SgDeclarationModifier::gnu_declaration_visability_enum	p_gnu_attribute_visability
bool	p_protected_declaration
int	p_name_qualification_length
bool	p_type_elaboration_required
bool	p_global_qualification_required
int	p_name_qualification_length_for_type
bool	p_type_elaboration_required_for_type
bool	p_global_qualification_required_for_type
bool	p_hasArrayTypeWithEmptyBracketSyntax
bool	p_using_C11_Alignas_keyword
SgNode *	p_constant_or_type_argument_for_Alignas_keyword
bool	p_using_auto_keyword
SgType *	p_auto_decltype
bool	p_using_device_keyword
bool	p_is_braced_initialized
bool	p_using_assignment_copy_constructor_syntax
bool	p_needs_definitions
bool	p_is_parameter_pack
bool	p_is_pack_element
Protected Attributes inherited from SgLocatedNode
Sg_File_Info *	p_startOfConstruct
	This pointer is always valid and stores the source position of the start of the current construct.
Sg_File_Info *	p_endOfConstruct
	This pointer is always valid and stores the source position of the end of the current construct.
AttachedPreprocessingInfoType *	p_attachedPreprocessingInfoPtr
	Holds comments and/or preprocessor directives located before or after the current statement of expression.
AstAttributeMechanism *	p_attributeMechanism
bool	p_containsTransformationToSurroundingWhitespace
Protected Attributes inherited from SgNode
SgNode *	p_parent
	This is the pointer to the parent IR node in the AST. More...
bool	p_isModified
	Records if IR node has been modified (data members reset). More...
bool	p_containsTransformation
SgNode *	p_freepointer
	This is the pointer to the chain of previously freed objects.

Friends
ROSE_DLL_API friend SgInitializedName *	isSgInitializedName (SgNode *s)
	Casts pointer from base class to derived class.
ROSE_DLL_API friend const SgInitializedName *	isSgInitializedName (const SgNode *s)
	Casts pointer from base class to derived class (for const pointers)

Additional Inherited Members
Protected Member Functions inherited from SgNode
virtual void	destructorHelper ()
	This gets called by all Rosebud-generated destructors. More...
virtual void	debugSerializationBegin (const char *className)
	Called by generated serializers. More...
virtual void	debugSerializationEnd (const char *className)
	Called by generated serializers. More...
Static Protected Attributes inherited from SgNode
static std::vector< std::tuple< unsigned char *, unsigned, VariantT > >	all_pools
static SgFunctionTypeTable *	p_globalFunctionTypeTable
	Pointer to symbol table specific to function types.
static SgTypeTable *	p_globalTypeTable
static std::map< SgNode *, std::string >	p_globalMangledNameMap
	Cache of mangled names to avoid regeneration of previously build mangled names or parts of mangled names. This is a performance optimization.
static std::map< std::string, int >	p_shortMangledNameCache
	STL map used as a cache to shorten generated mangled names. This is mostly a space optimization ofr mangled names of templates.
static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForNames
static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTypes
static std::map< SgNode *, std::string >	p_globalQualifiedNameMapForTemplateHeaders
static std::map< SgNode *, std::string >	p_globalTypeNameMap
static std::map< SgNode *, std::map< SgNode *, std::string > >	p_globalQualifiedNameMapForMapsOfTypes

Member Enumeration Documentation

enum SgInitializedName::preinitialization_enum

Preinitialization Enum (only one value can be specified)

Initialization information which I forget the details of ...

Enumerator
e_unknown_preinitialization	default value
e_virtual_base_class	virtual base class value
e_nonvirtual_base_class	nonvirtual base class value
e_data_member	data member value
e_delegation_constructor	delegation constructor (C++11 feature)
e_last_preinitialization	last value (upper bound on range of values, used in error checking)

Definition at line 97196 of file Cxx_Grammar.h.

enum SgInitializedName::asm_register_name_enum

Register names (x86 specific GNU names).

Enumerator
e_invalid_register	error value
e_memory_register	memory
e_register_d	eax, ebx, ecx, edx
e_register_sp	esi, edi, ebp, esp
e_register_r11	x86-64 extra integer registers
e_register_st3	80387 floating point stack
e_register_mm3	MMX registers
e_register_f3	SSE/SSE2 registers
e_register_f11	x86-64 extra SSE registers
e_register_dirflag	control registers
e_unrecognized_register	used to represent an unrecognized register.

Definition at line 97211 of file Cxx_Grammar.h.

enum SgInitializedName::gnu_variable_attribute_enum

Enumerator
e_gnu_attribute__weak__	GNU specific attribute for (GNU extension)
e_gnu_attribute__unused__	GNU specific attribute for (GNU extension)
e_gnu_attribute__used__	GNU specific attribute for (GNU extension)
e_gnu_attribute__deprecated__	GNU specific attribute for (GNU extension)
e_gnu_attribute__nocommon__	GNU specific attribute for (GNU extension)
e_gnu_attribute__transparent_union__	GNU specific attribute for (GNU extension)
e_gnu_attribute__weakref__	GNU specific attribute for (GNU extension)
e_gnu_attribute__packed__	GNU specific attribute for (GNU extension)
e_gnu_attribute__noreturn__	GNU specific attribute for (GNU extension)
e_gnu_attribute__noreorder__	GNU specific attribute for (GNU extension)
e_ms_declspec_parameter_appdomain	Microsoft declspec() attributes
e_ms_declspec_parameter_deprecated	Microsoft declspec() attributes
e_ms_declspec_parameter_dllimport	Microsoft declspec() attributes
e_ms_declspec_parameter_dllexport	Microsoft declspec() attributes
e_ms_declspec_parameter_novtable	Microsoft declspec() attributes
e_ms_declspec_parameter_process	Microsoft declspec() attributes
e_ms_declspec_parameter_property	Microsoft declspec() attributes
e_ms_declspec_parameter_restrict	Microsoft declspec() attributes
e_ms_declspec_parameter_selectany	Microsoft declspec() attributes
e_ms_declspec_parameter_thread	Microsoft declspec() attributes
e_ms_declspec_parameter_uuid	Microsoft declspec() attributes
e_last_gnu_variable_attribute	last value (upper bound on range of values, used in error checking)

Definition at line 97278 of file Cxx_Grammar.h.

Constructor & Destructor Documentation

SgInitializedName::SgInitializedName	(	Sg_File_Info *	fileInfo,
		const SgName &	name,
		SgType *	typeptr,
		SgInitializer *	iptr,
		SgDeclarationStatement *	declptr,
		SgScopeStatement *	scope,
		SgInitializedName *	prev_itemptr
	)

This is the constructor.

Parameters

fileInfo	pointer to source position (also used to mark compiler generated or transformed code)
name	the variable name
typeptr	a pointer to the variable's type object
iptr	pointer to the initializer of the variable ( if any)
declptr	pointer to the declaration statement to which this SgInitializedName belongs to
scope	pointer to SgScopeStatement to explicitly represent the scope of the variable (required for ROSE, but mostly useful in C++)
itemptr	the next SgInitializedName object in the parent declaration statement
prev_itemptr	the previous SgInitializedName object in the parent declaration statement

See also

Example:create an SgInitializedName object

Member Function Documentation

SgNode * SgInitializedName::copy ( SgCopyHelp &  help ) const

overridevirtual

It clones the current SgInitializedName object recursively or not, depending on the argument.

Parameters

help	- If this argument is of type SgTreeCopy, then the SgInitializedName is cloned recursively. If it's of type SgShallowCopy only the first level of SgInitializedName is copied, everything else pointing to the the original SgInitializedName object's data members.

Returns

a pointer to the new clone.

Reimplemented from SgLocatedNodeSupport.

SgInitializedName & SgInitializedName::operator=

(

const SgInitializedName &

ptr

)

assignment operator. It copies everything (including pointers) from the rhs object to the lhs object

It copies all the data members of the rhs SgInitializedName object to the lhs (this) object. The copying is done by value, so all the data member pointers are copied by value. After the assignment operator is executed, both operands share the same data members. Actually there is a note in the source code (Cxx_Grammar.h) that says that this needs to be executed recursively ( allocating new data members for the newly assigned object).

bool SgInitializedName::operator==

(

const SgInitializedName &

)

const

Equal operator : it checks if all the data members are the same or point to the same objects.

What really happens It returns false all the time.

bool SgInitializedName::get_declaration

(

)

const

Equal operator : it checks if all the data members are the same or point to the same objects.

Returns

Pointer to SgDeclarationStatement

SgInitializedName::get_symbol_from_symbol_table

(

)

const

Get the associated SgSymbol from the symbol table located in the scope, without considering possible prev_decl_item. Internal use only. Users should use search_for_symbol_from_symbol_table() instead.

FOR INTERNAL USE Get the associated symbol from the symbol table in the stored scope. Users should use the SgInitializedName::search_for_symbol_from_symbol_table() instead.

virtual const char* SgInitializedName::sage_class_name ( ) const

overridevirtual

returns a C style string (char*) representing the class name

Reimplemented from SgLocatedNodeSupport.

virtual bool SgInitializedName::isInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgLocatedNodeSupport.

virtual void SgInitializedName::checkDataMemberPointersIfInMemoryPool ( )

overridevirtual

FOR INTERNAL USE This is used in internal tests to verify that all IR nodes are allocated from the heap.

The AST File I/O depends upon the allocation of IR nodes being from the heap, stack based or global IR nodes should not appear in the AST if it will be written out to a file and read back in. To enforce this concept, this function implements a test to verify that the IR node can be found on the heap and is part of a larger test of the whole AST. This test must pass before the AST can be written out to a file. This is part of a compromise in the design of the AST File I/O to support binary streaming of data to files; for performance. It is also rather difficult, but possible, to build a useful AST with IR nodes allocated on the stack or frm global scope, this test filters out such cased from being used with the AST File I/O mechanism.

Reimplemented from SgLocatedNodeSupport.

virtual std::vector<std::pair<SgNode*,std::string> > SgInitializedName::returnDataMemberPointers ( ) const

overridevirtual

FOR INTERNAL USE Returns STL vector of pairs of SgNode* and strings for use in AST tools

This functions is part of general support for many possible tools to operate on the AST. The forms a list of ALL IR node pointers used by each IR node, and is a supperset of the get_traversalSuccessorContainer(). It is (I think) less than the set of pointers used by the AST file I/O. This is part of work implemented by Andreas, and support tools such as the AST graph generation.

Warning

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Returns

STL vector of pairs of SgNode* and strings

Reimplemented from SgLocatedNodeSupport.

virtual void SgInitializedName::processDataMemberReferenceToPointers ( ReferenceToPointerHandler *  )

overridevirtual

FOR INTERNAL USE Processes pairs of references to SgNode* and strings for use in AST tools

This functions similar to returnDataMemberPointers() except that it passes references to a handler object. As a result there is FAR more damage that can be done by using this function, but it is type-safe. This is provided for support of internal tools that operate on the AST, e.g the AST Merge mechanism.

Warning

This function can return unexpected data members and thus the order and the number of elements is unpredicable and subject to change.

Reimplemented from SgLocatedNodeSupport.

virtual long SgInitializedName::getChildIndex ( SgNode *  childNode ) const

overridevirtual

FOR INTERNAL USE Returns a unique index value for the childNode in the list of children at this IR node.

This function returns a unique value for the input childNode in set of children at this IR node. Note that a negative value indicates that the input node is not a child. This is the basis for the implementation of the isChild(SgNode*) member function. Data members that are NULL in the IR node are counted internally (so that this function returns value that could be statically defined, and so are not dynamically determined).

Warning

The mapping on children to integer values could change from release to release of ROSE.

Returns

long

Reimplemented from SgLocatedNodeSupport.

SgInitializedName* SgInitializedName::addRegExpAttribute	(	std::string	s,
		AstRegExAttribute *	a
	)

Support for AST matching using regular expression.

This support is incomplete and the subject of current research to define RegEx trees to support inexact matching.

Member Data Documentation

SgInitializedName::p_name

protected

The variable that is declared in this declaration.

variable x

This is a SgName object which represents the variable that is being declared in this SgInitializedName object. For example, if there is a "int x" declaration in the code, "x" is the variable that will be stored in SgInitializedName::p_name as a SgName object.

detailed variable x

Definition at line 98178 of file Cxx_Grammar.h.

SgInitializedName::p_typeptr

protected

Pointer to a type object that has been associated with SgInitializedName::p_name.

This is a pointer that points to an SgType object that represents the type the variable SgInitializedName::p_name declared in this SgInitializedName class (in this declaration). For example, if the variable is of type "int" (as in "int x"), then a SgTypeInt object has to be allocated , and a pointer to this SgTypeInt object has to be stored in SgInitializedName::p_typeptr to represent the type of SgInitializedName::p_name.

Definition at line 98186 of file Cxx_Grammar.h.

SgInitializedName::p_initptr

protected

Pointer to an initializer for the variable.

In the case that the declaration contains an initializer for the variable, for example "int x=5" or "int x=y" (in these cases the intializers for the declared variable are "5" and "y"), that initializer has to be stored in SgInitializedName::p_initptr as a pointer that points to the SgInitializer object that the SgInitializedName::p_name variable is initialized with.

Definition at line 98190 of file Cxx_Grammar.h.

SgInitializedName::p_prev_decl_item

protected

Pointer to the initial uses of this variable previous to its redeclaration declaration.

Dan's intuitive explanation This pointer references any initialized name previously built to define a SgVarRefExp, which requires a pointer to a variable declaration (but points to a SgInitializedName since a SgVariableDeclaration could stand for many variables (not just one, e.g. "int x,y,z;"), since uniqueness is required. Although non-intuative, C++ code defined within a class definition can reference variables before they are defined (e.g. "class X { int foo() { return x; } int x; };"), see test2005_67.C (non-static data member) and test2005_68.C (static data member). It is also used by a SgInitializedName in a static declaration outside the class to refer to the preliminary declaration inside the class. (e.g. "class X { static int a;}; int X::a = 0; };")

Definition at line 98194 of file Cxx_Grammar.h.

SgInitializedName::p_is_initializer

protected

flag to determine whether the declaration has an initializer.

If the declaration has an initializer, for example "int x=5", then this flag is set to true. The flag is set to false otherwise.

Definition at line 98198 of file Cxx_Grammar.h.

SgInitializedName::p_declptr

protected

Pointer to the declaration object where this SgInitializedName object belongs to.

Alin's intuitive explanation

Each SgInitializedName object contains the declaration of one variable. In the case where the code has more declarations in a single statement, for example "int x=5,y=3;", that declaration is composed of two SgInitializedName objects, one for each variable declared in that statment. So, this SgInitializedName::p_declptr points to the statement (actually the declaration - SgDeclaration) that contains it.

What really happens

For the first SgInitializedName, this points to the the SgDeclarationStatement that contains this SgInitializedName. For the second one, it is set to an unknown SgDeclarationStatement that does not show up in the pdf or the dot files (not traversed).

Dan's explaination

This points to the SgVariableDefinition and is the same as get_definition().

Definition at line 98202 of file Cxx_Grammar.h.

SgInitializedName::p_storageModifier

protected

This is the storage modifier (static, auto, register, mutable, asm, etc.).

This is the storage modifier (static, auto, register, mutable, asm, etc.), see complete list in source code for more details. This is an implementation of the modifier system as outlined in appendix A of Bjarne's book.

Definition at line 98206 of file Cxx_Grammar.h.

SgInitializedName::p_scope

protected

This pointer is always valid and stores the current scope of the variable.

This is the current scope of the variable (required because variables can be defined separately from their declaration). See test2004_133.C (approx).

Definition at line 98210 of file Cxx_Grammar.h.

SgInitializedName::p_preinitialization

protected

This data member stores an enum value.

This value is set based on an enum value to indicate the type of use of the initialized name (valid values are: virtual base class, non-virtual base, data member).

Definition at line 98214 of file Cxx_Grammar.h.

SgInitializedName::p_register_name_code

protected

Code (following GNU standard) for register name.

This value is set based on an enum value of GNU standard codes mappings to register names.

Definition at line 98222 of file Cxx_Grammar.h.

---

The documentation for this class was generated from the following files:

• Cxx_Grammar.h
• SgInitializedName.docs
